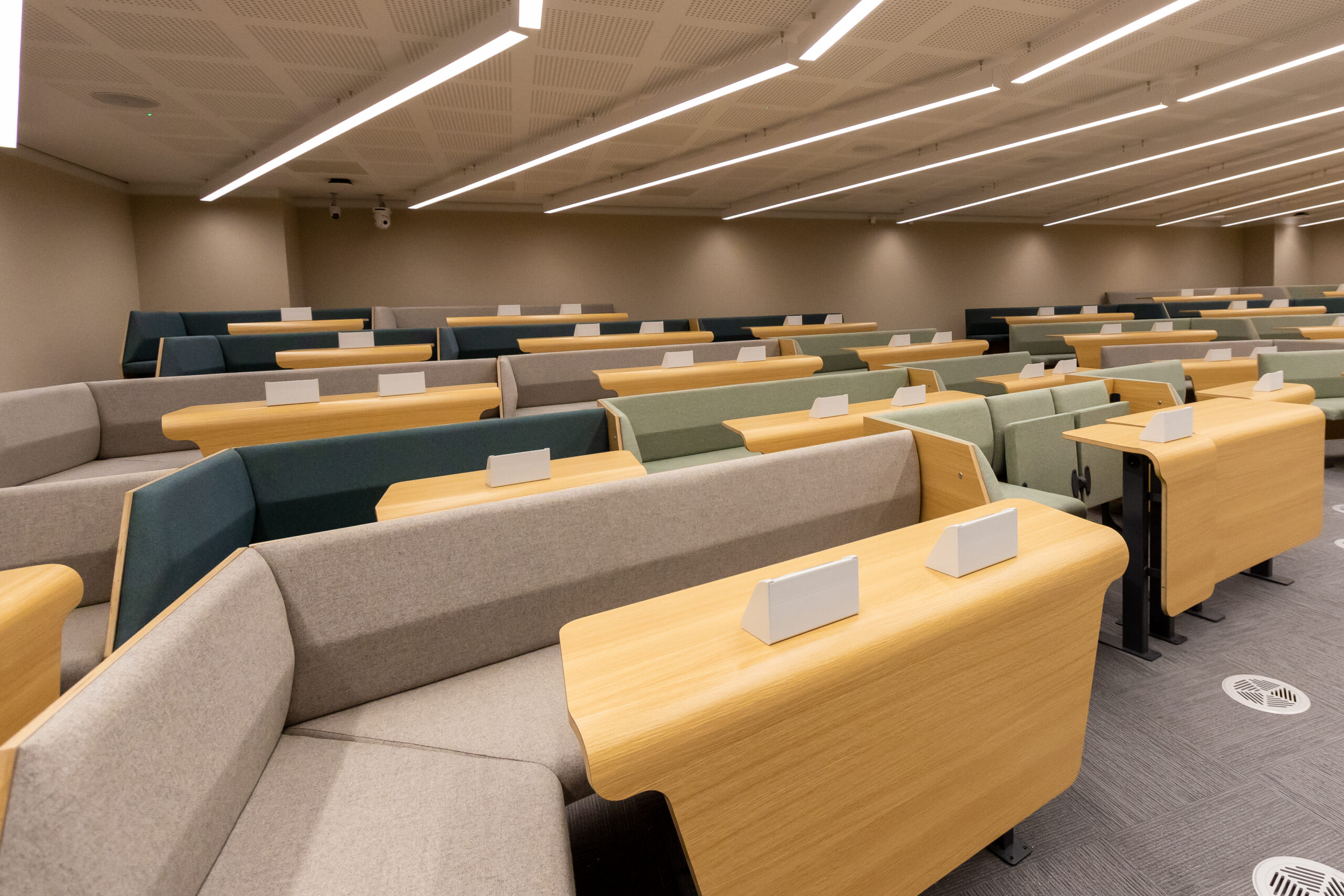

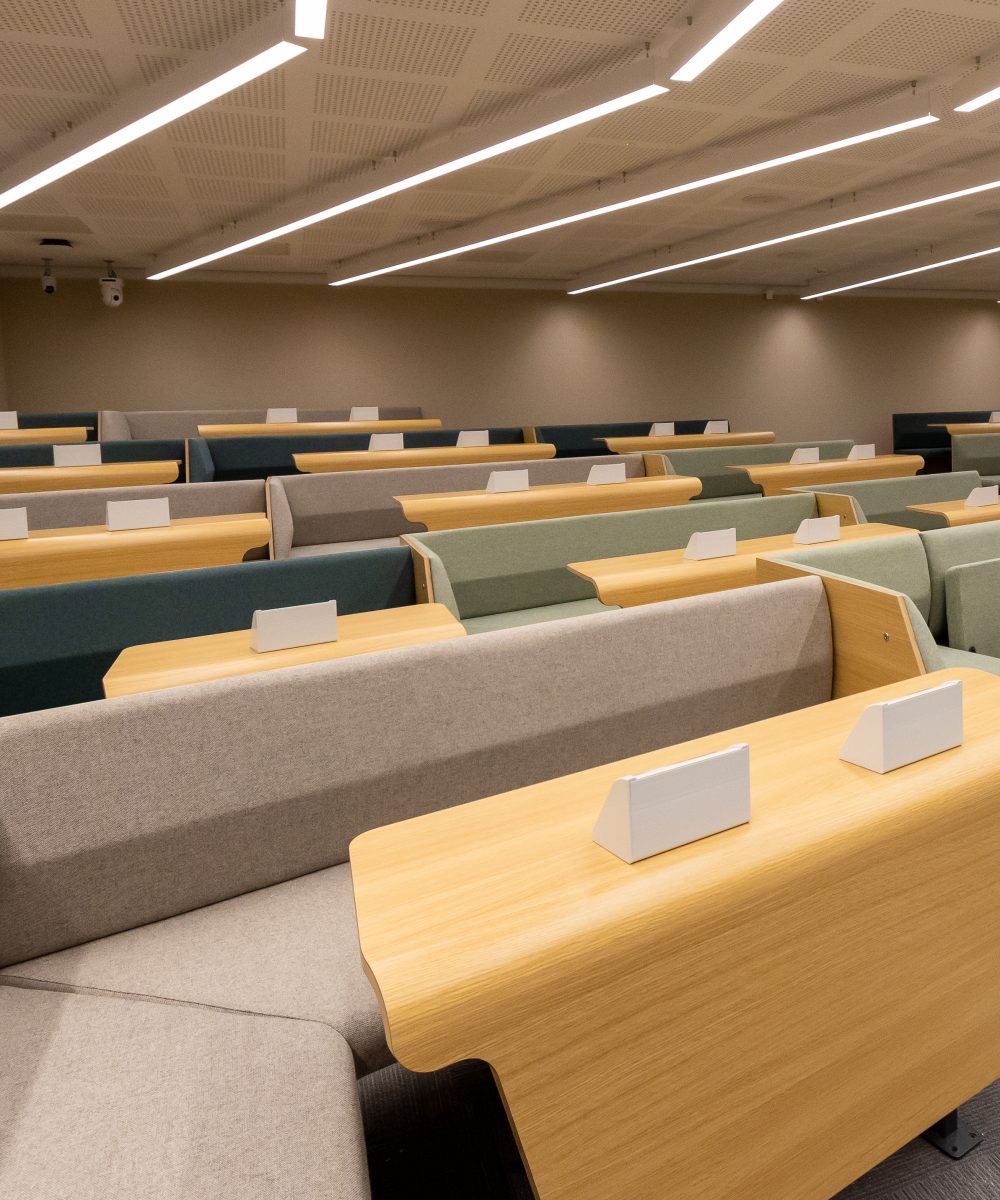

connect - from client

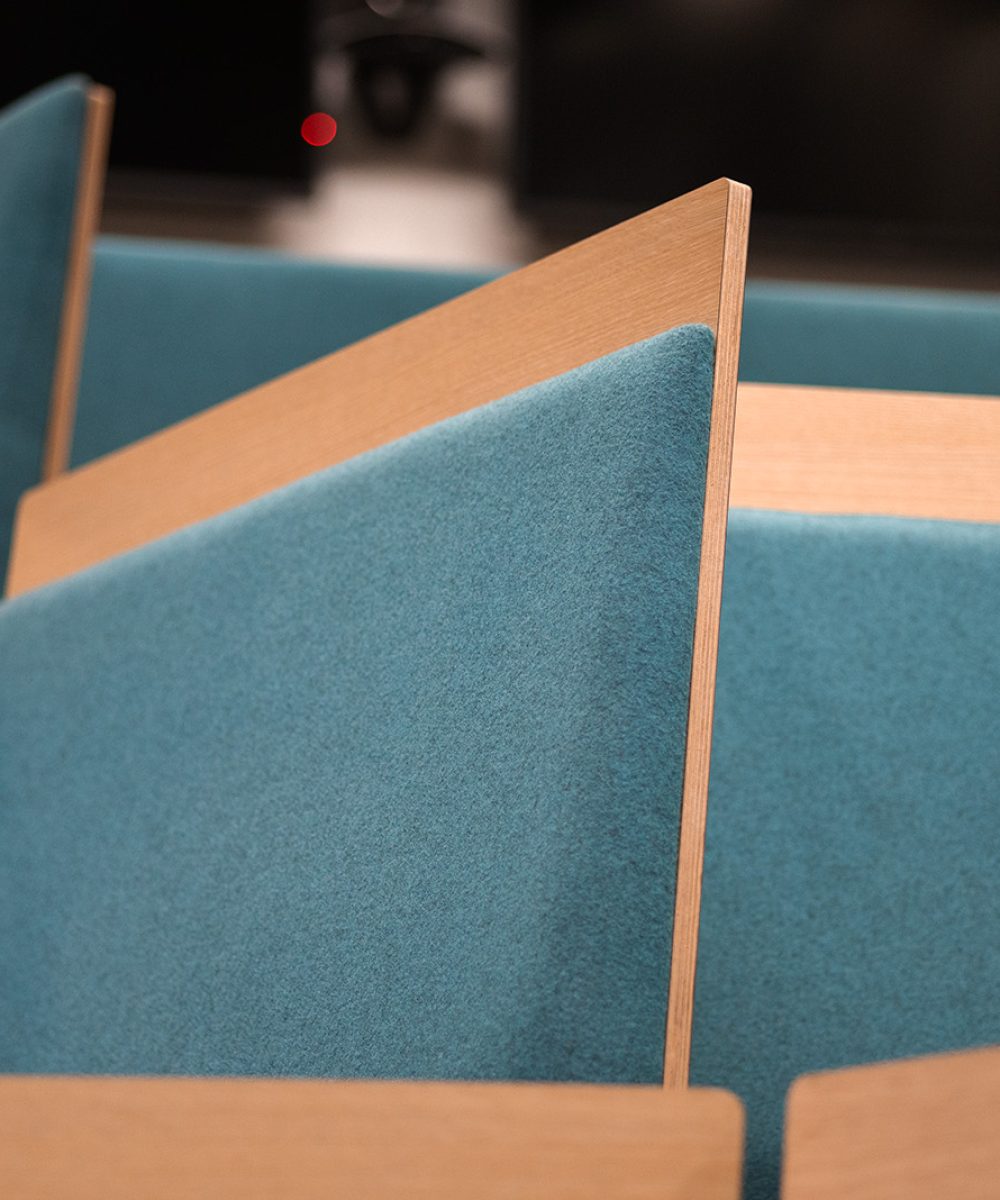

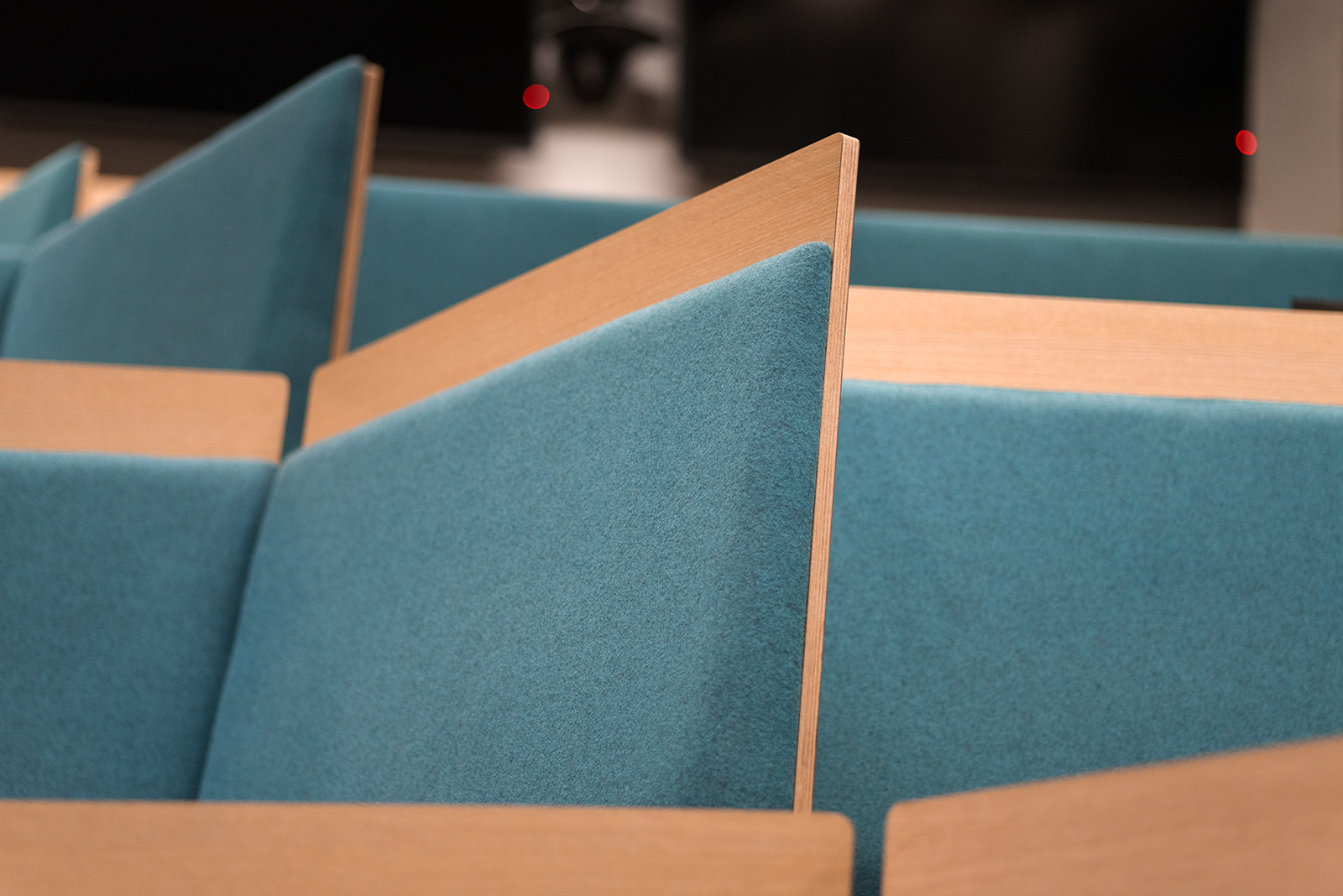

lowres21

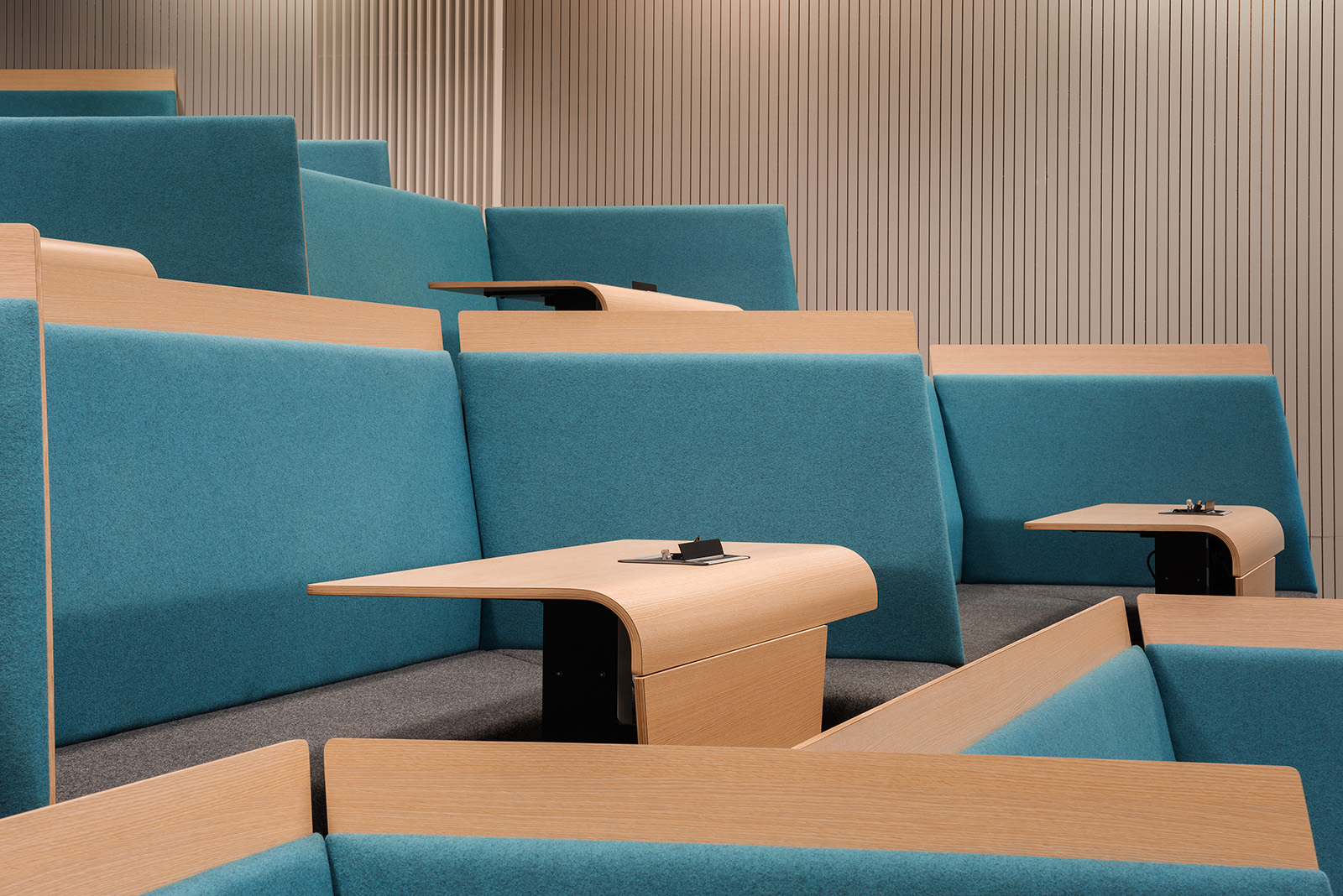

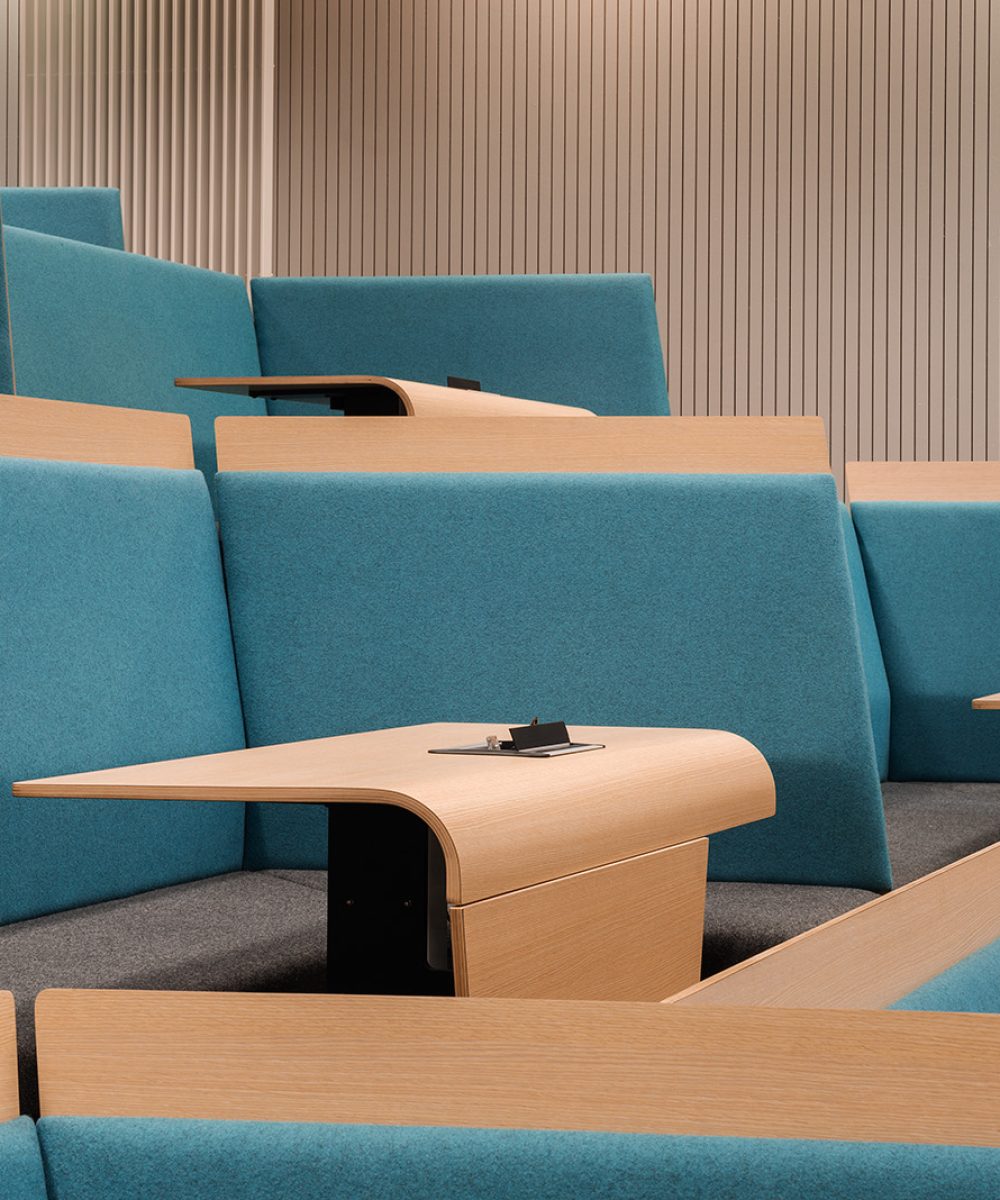

lowres20

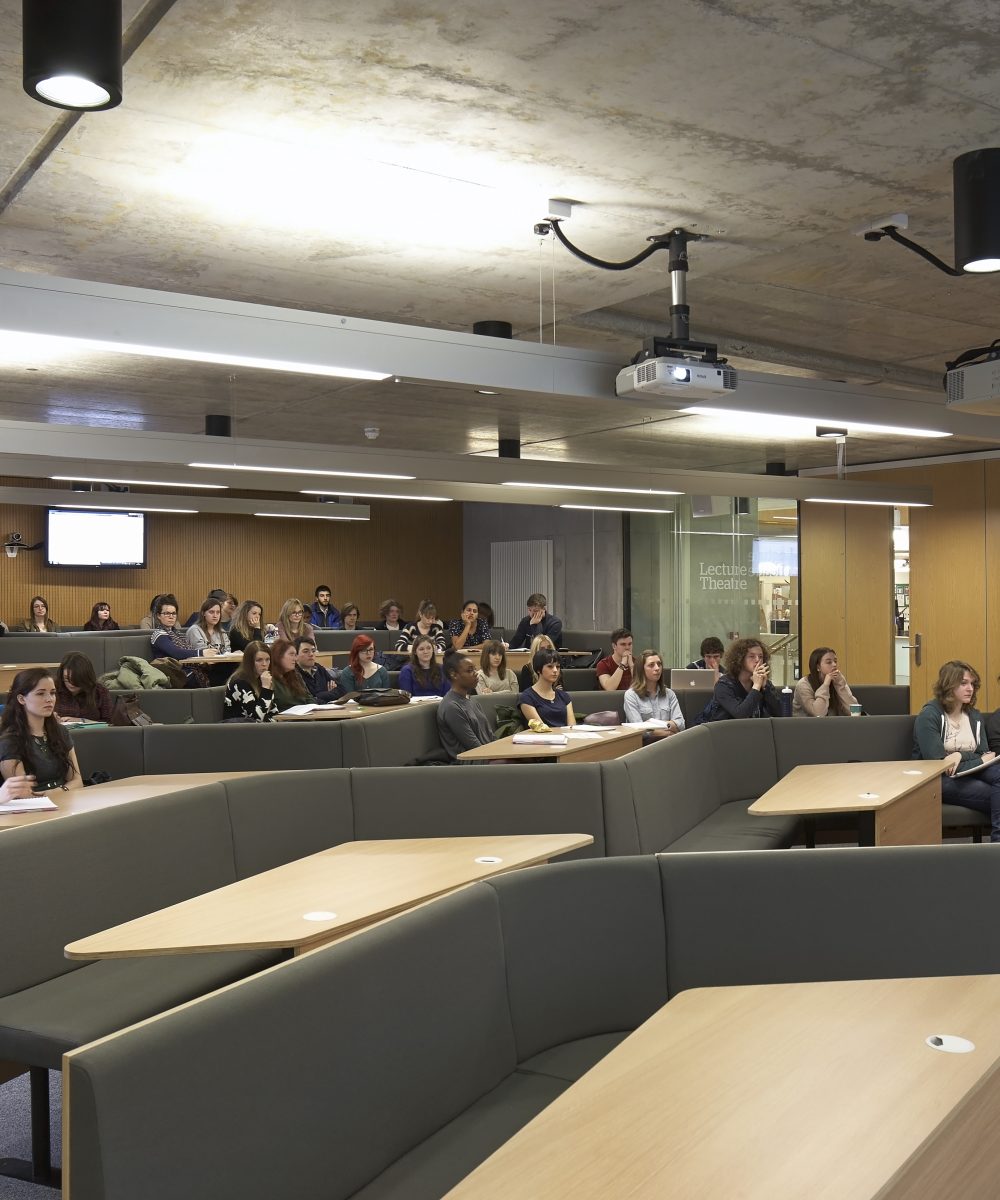

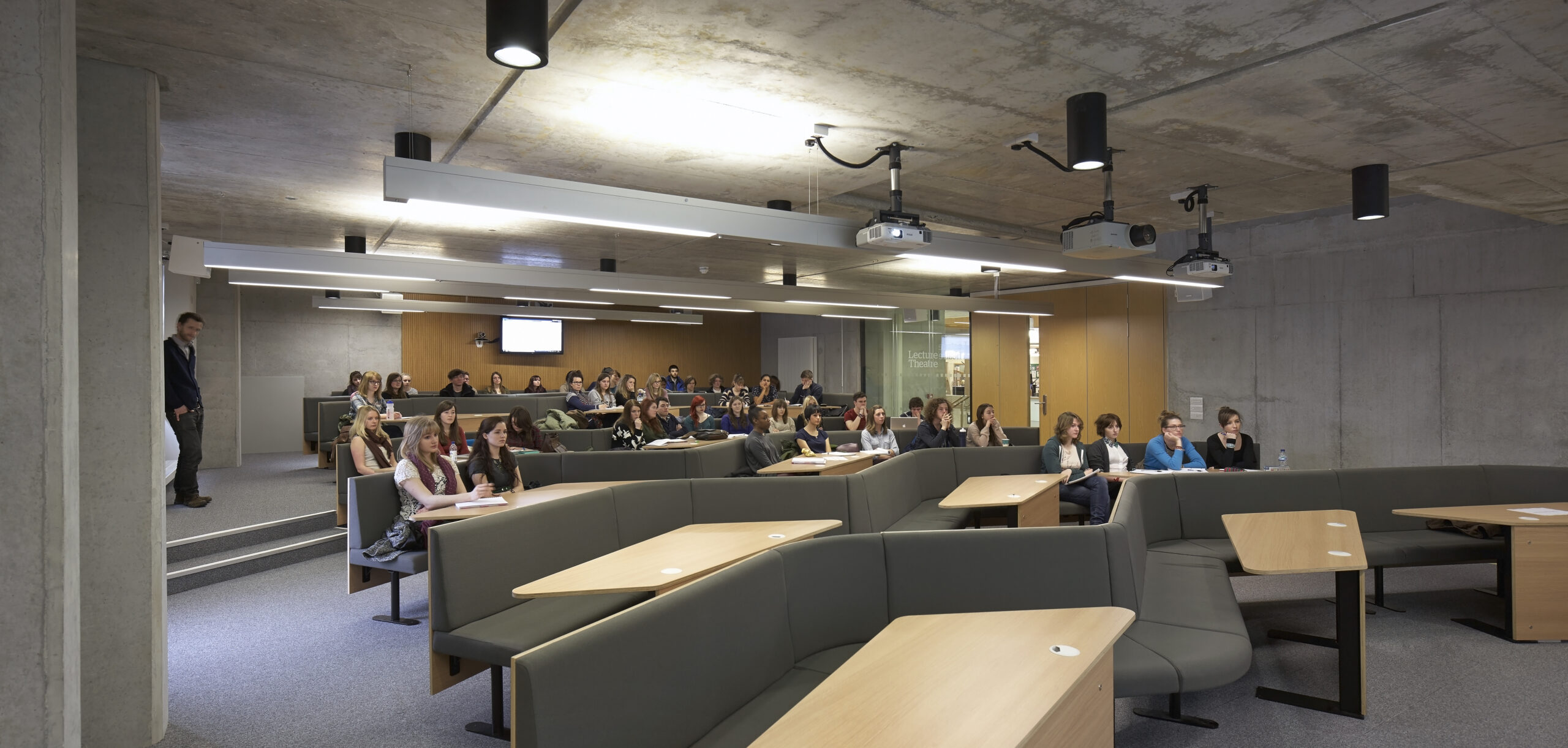

Burwell Deakins_The Exchange_-®Hufton+Crow_023

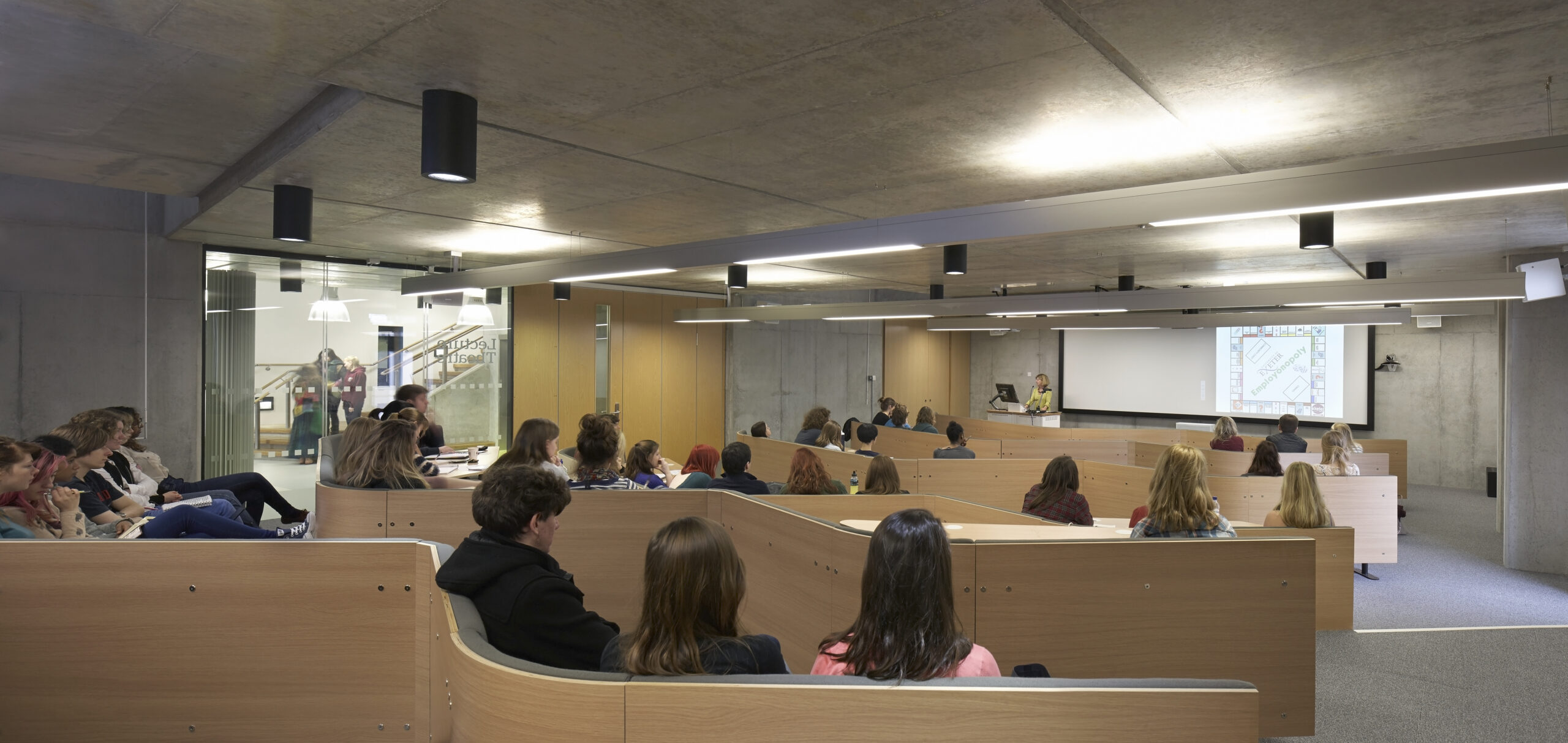

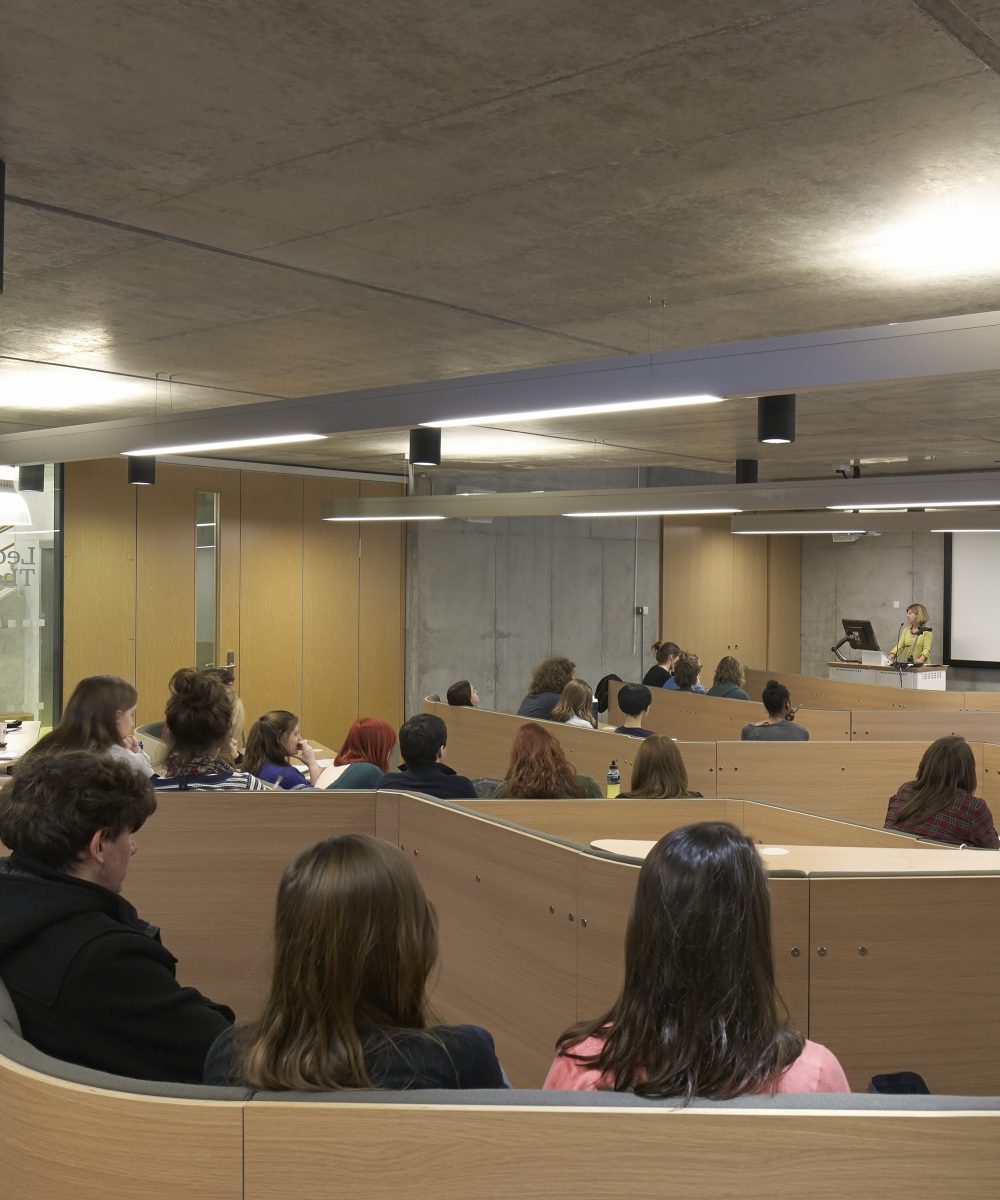

Burwell Deakins_The Exchange_-®Hufton+Crow_031

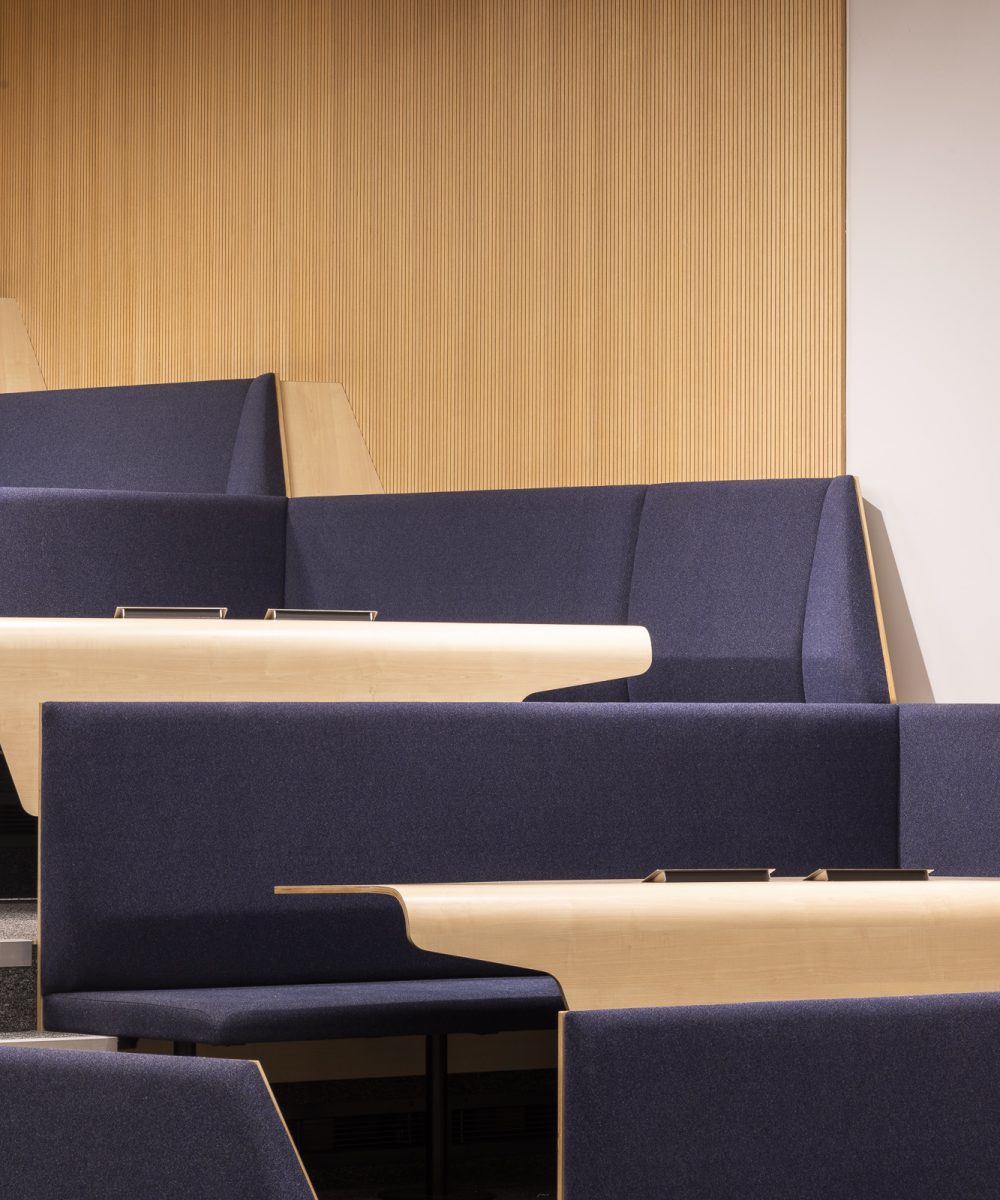

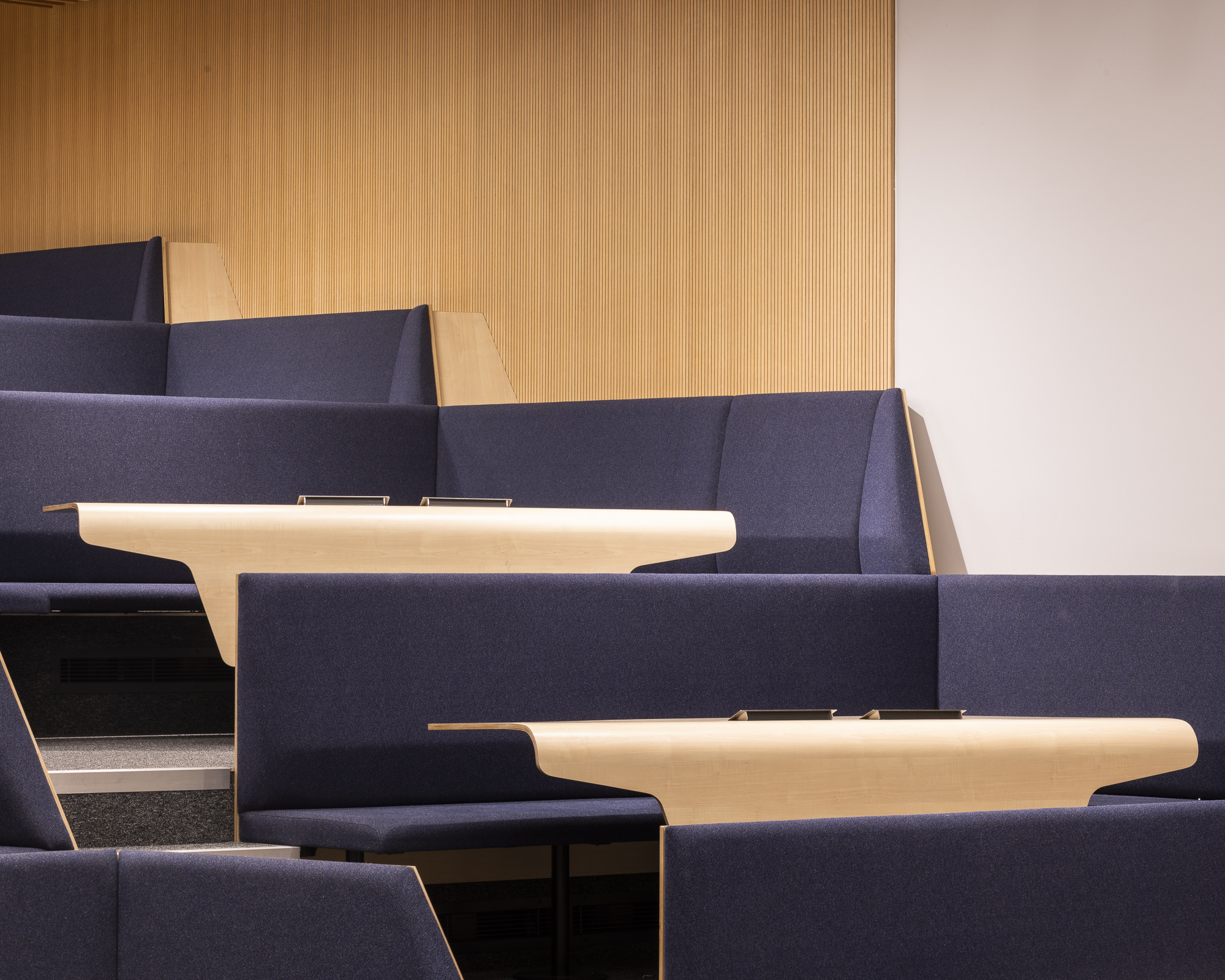

ICL_LectureTheatres_DRAFT_LR_S-21

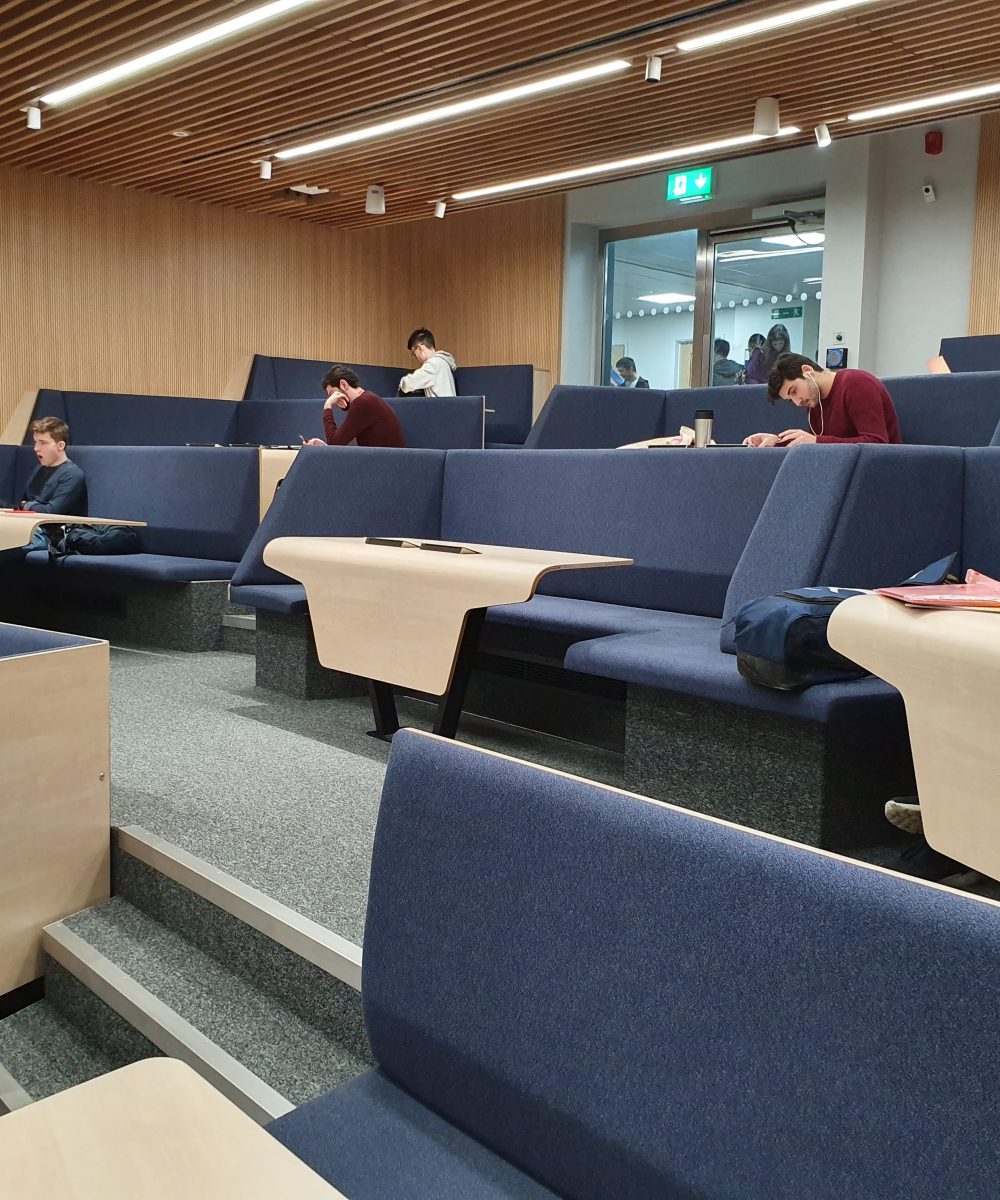

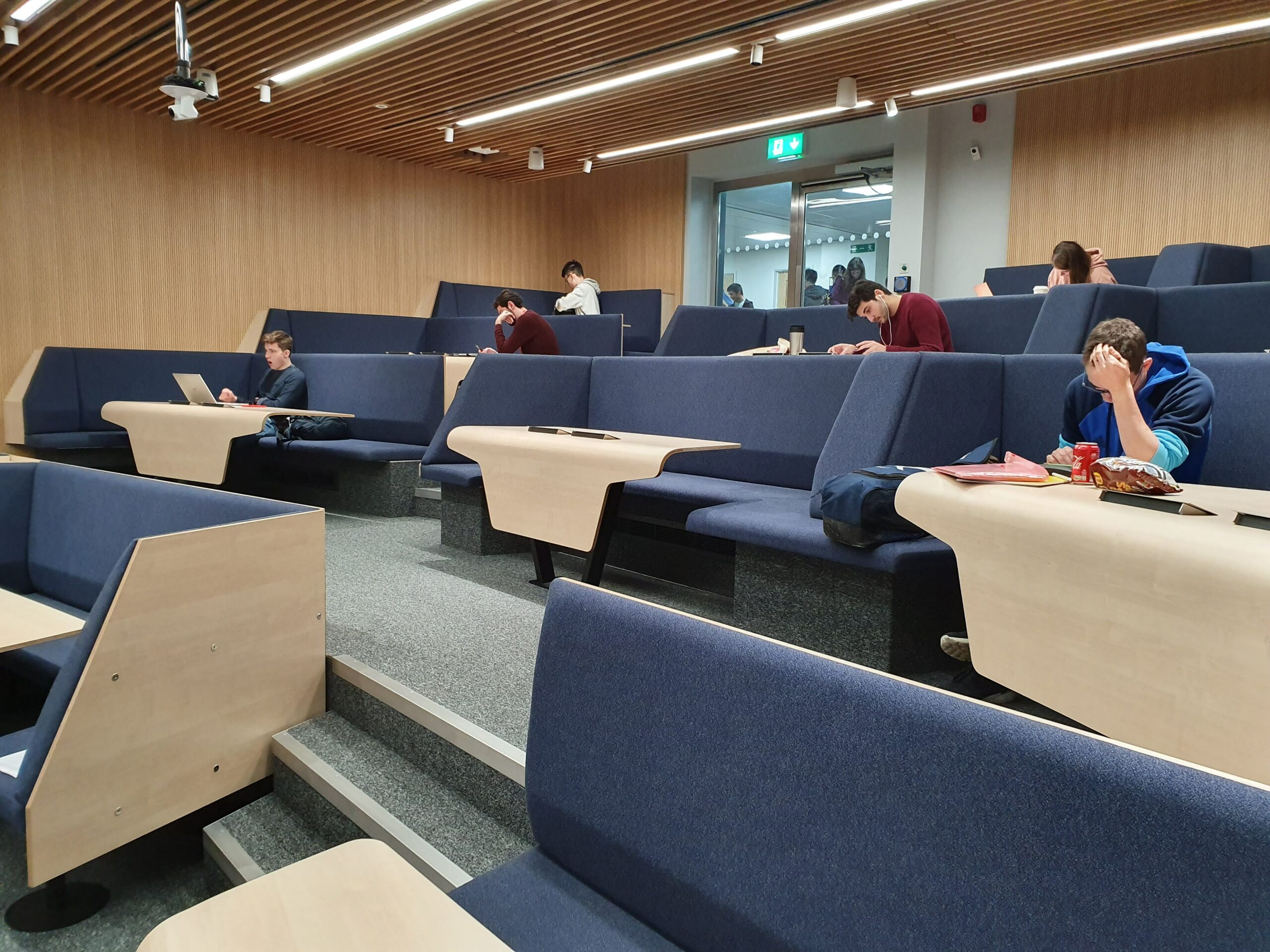

Imperial College Connect Blackett Lecture Theatre

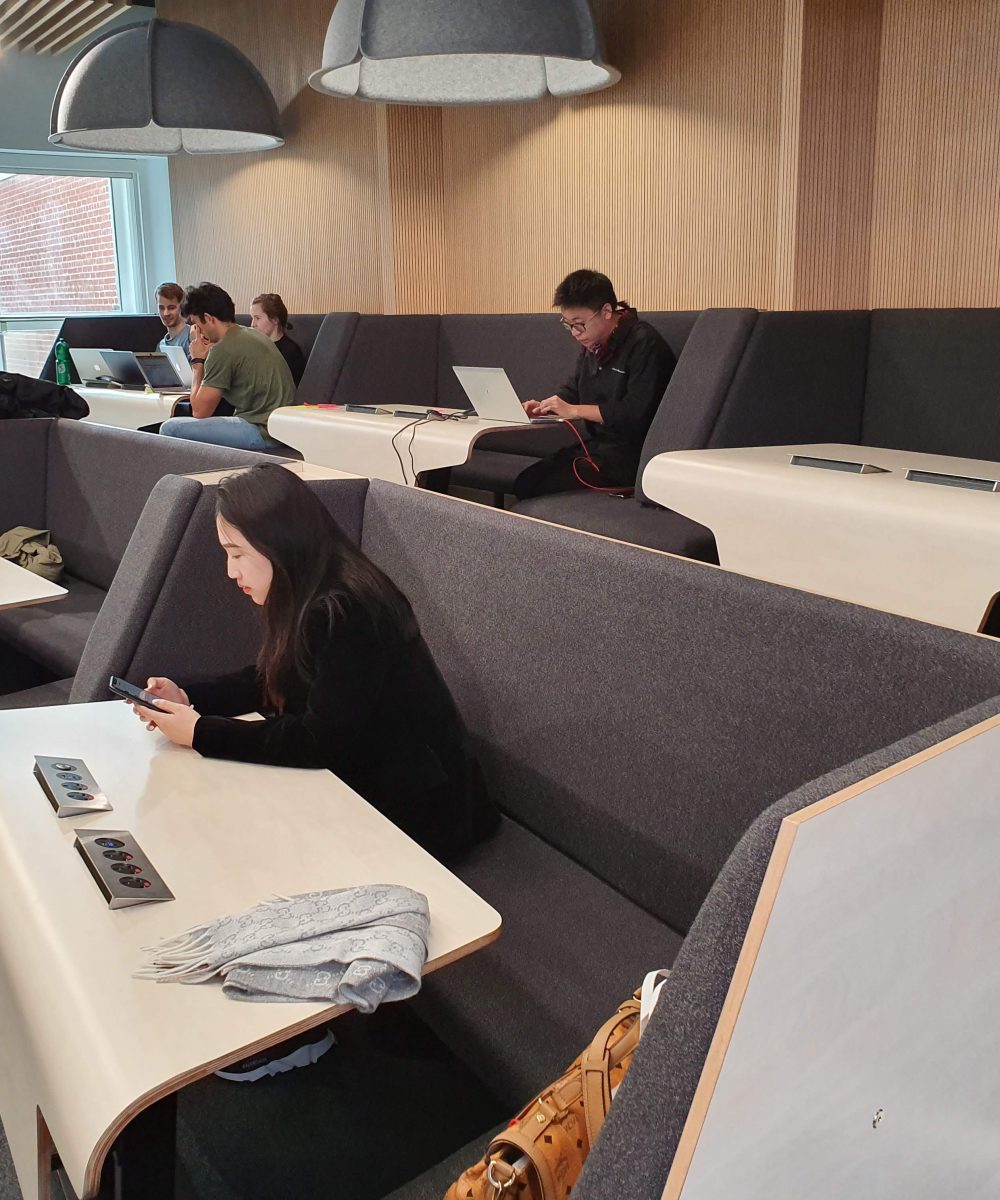

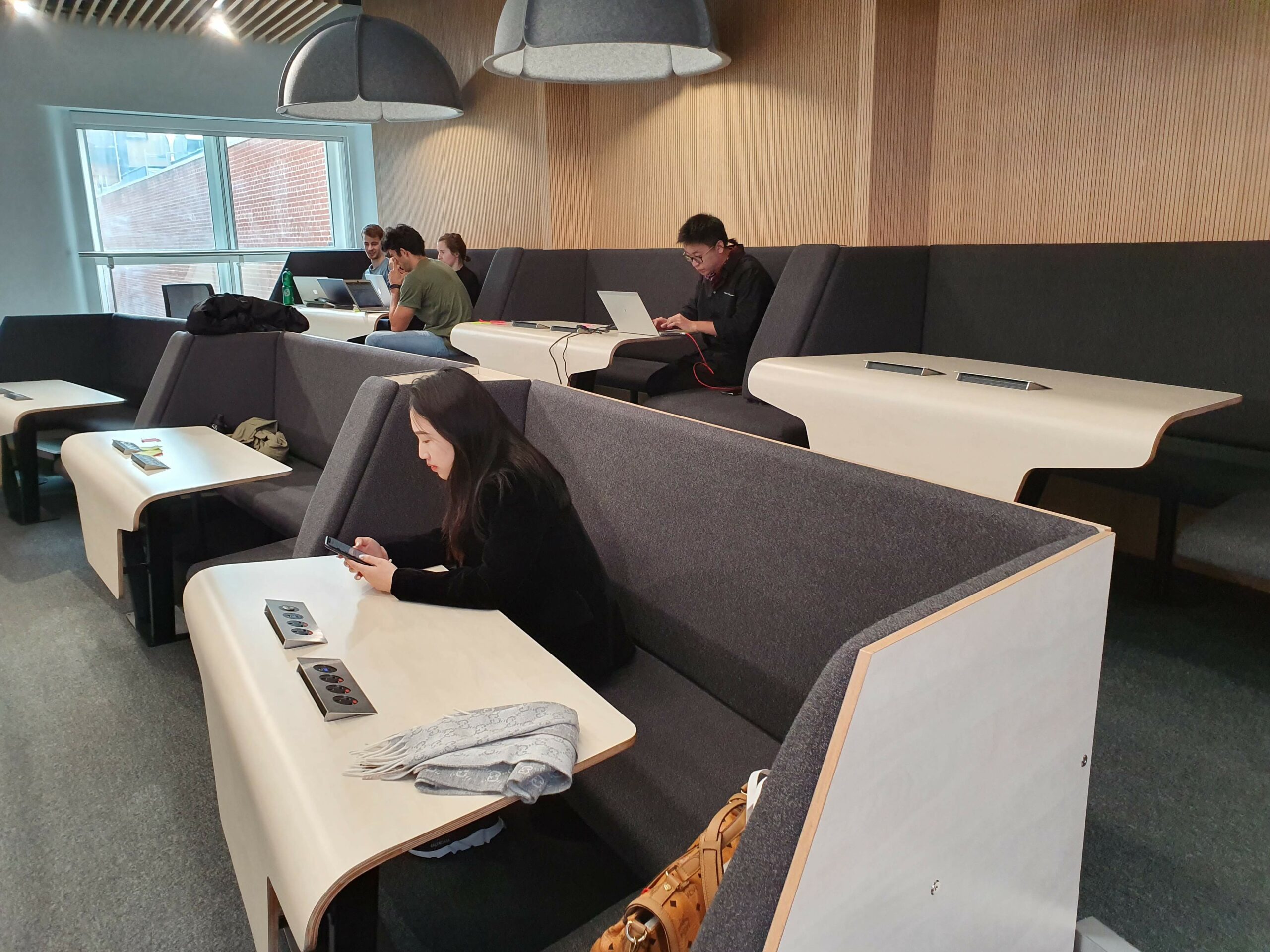

Imperial College London RSM Connect

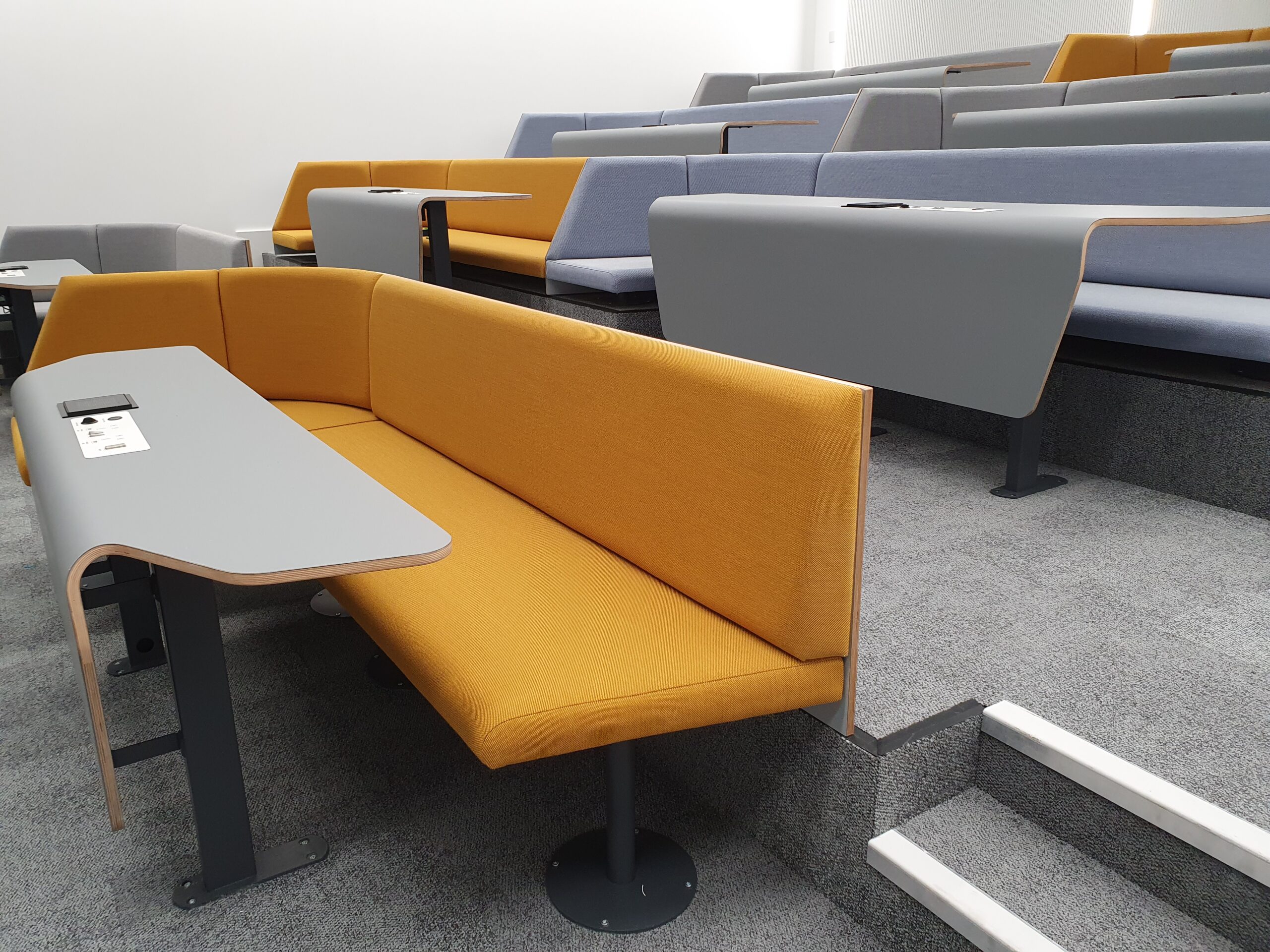

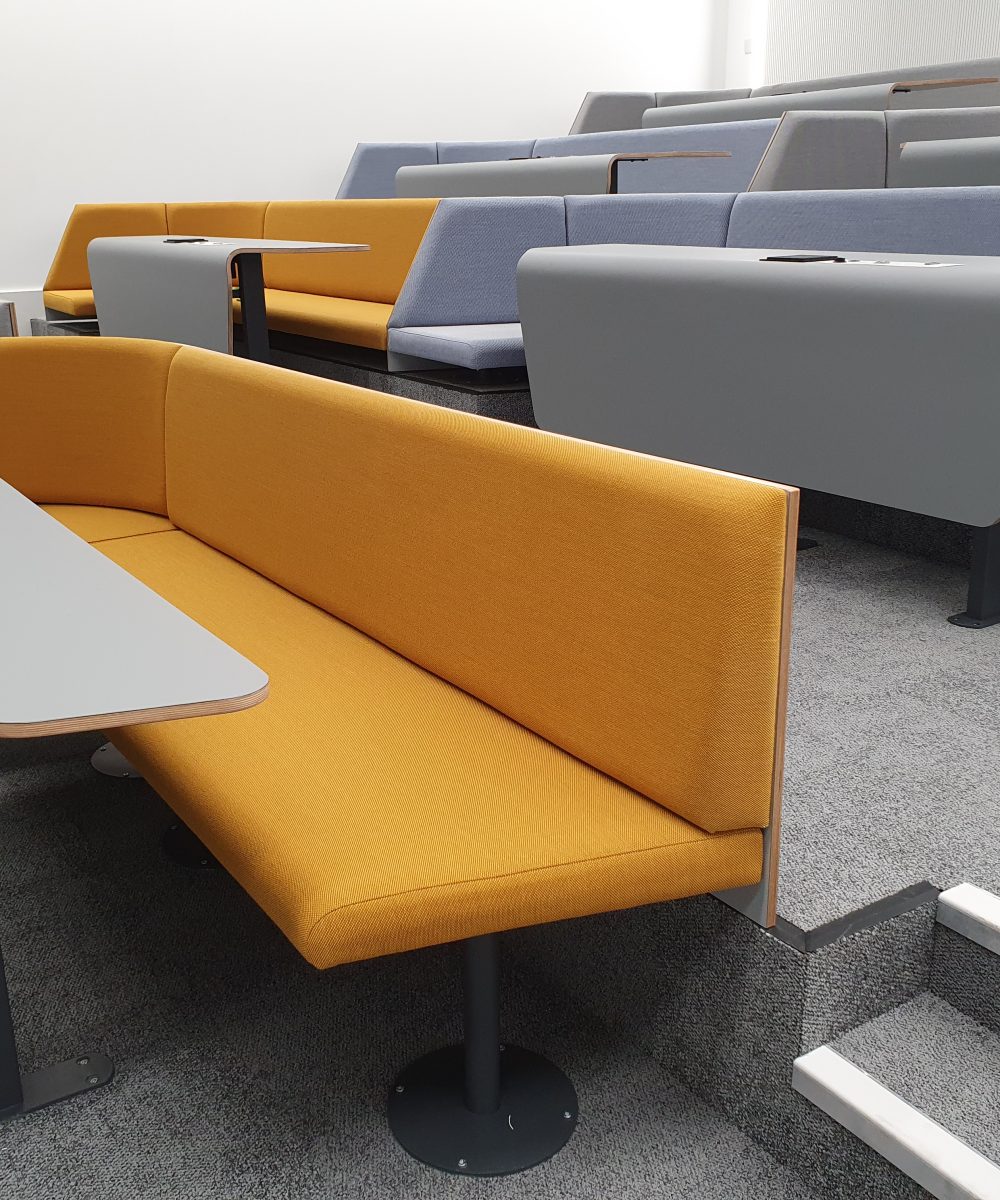

20200616_141150

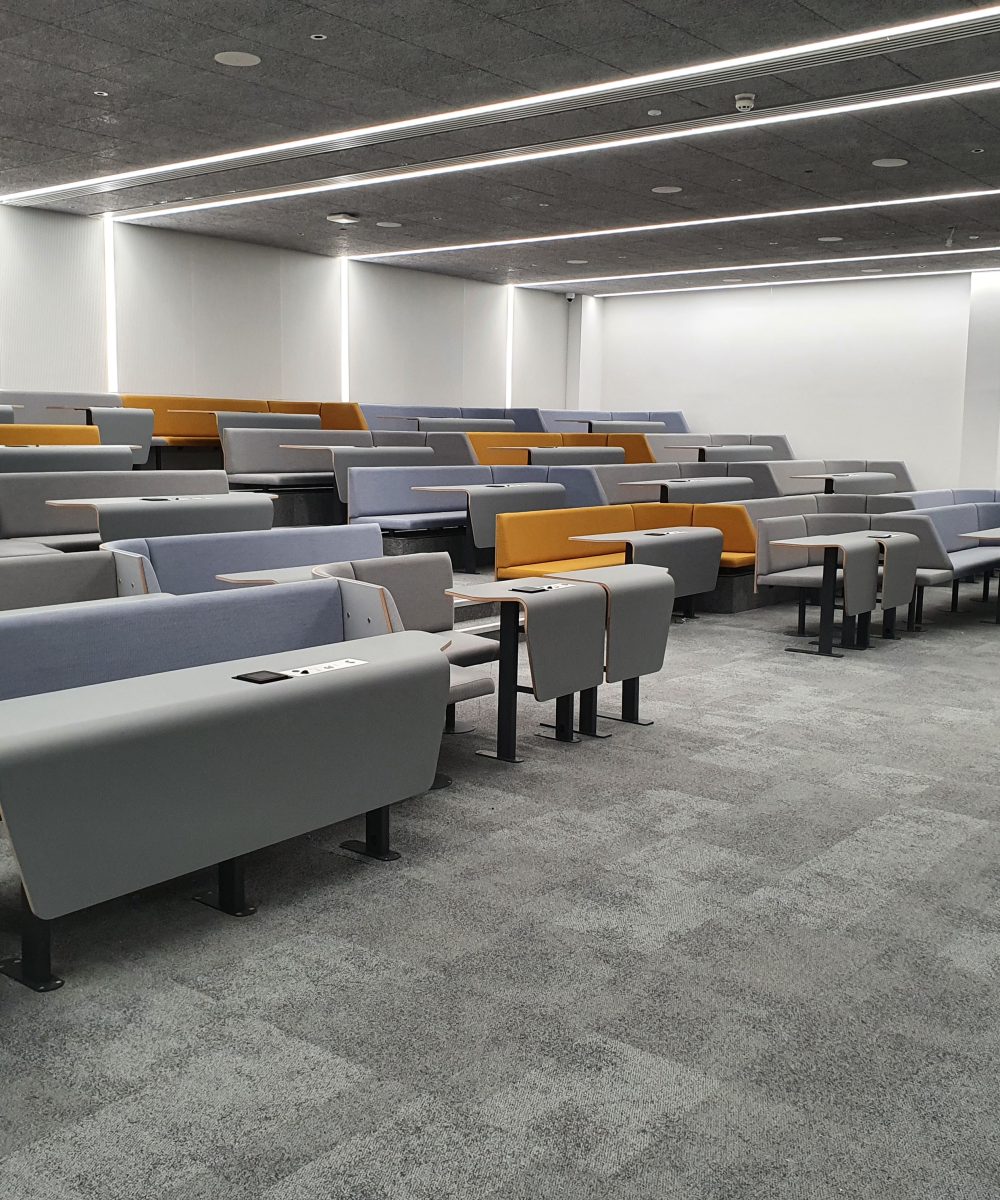

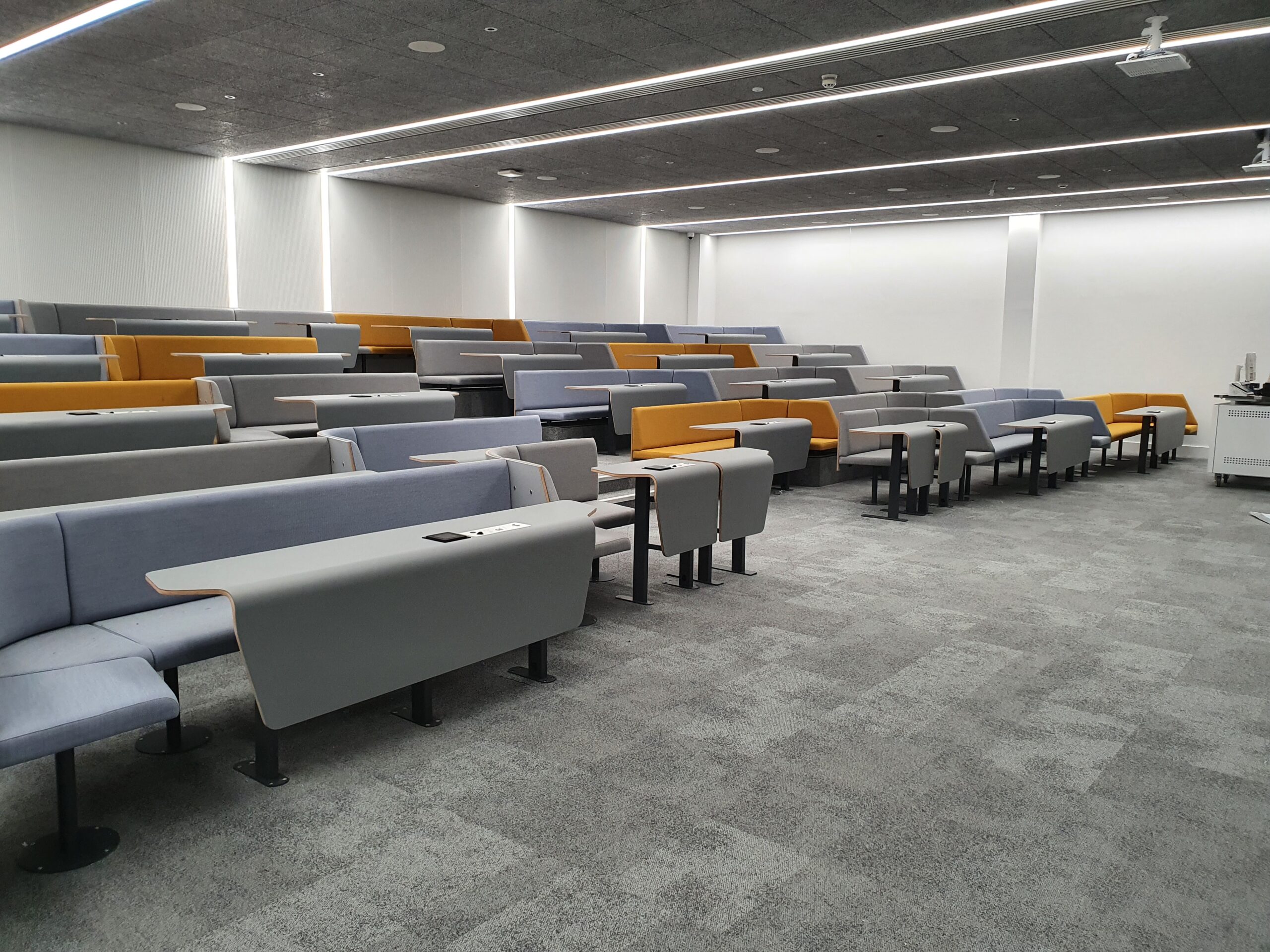

20200616_142438

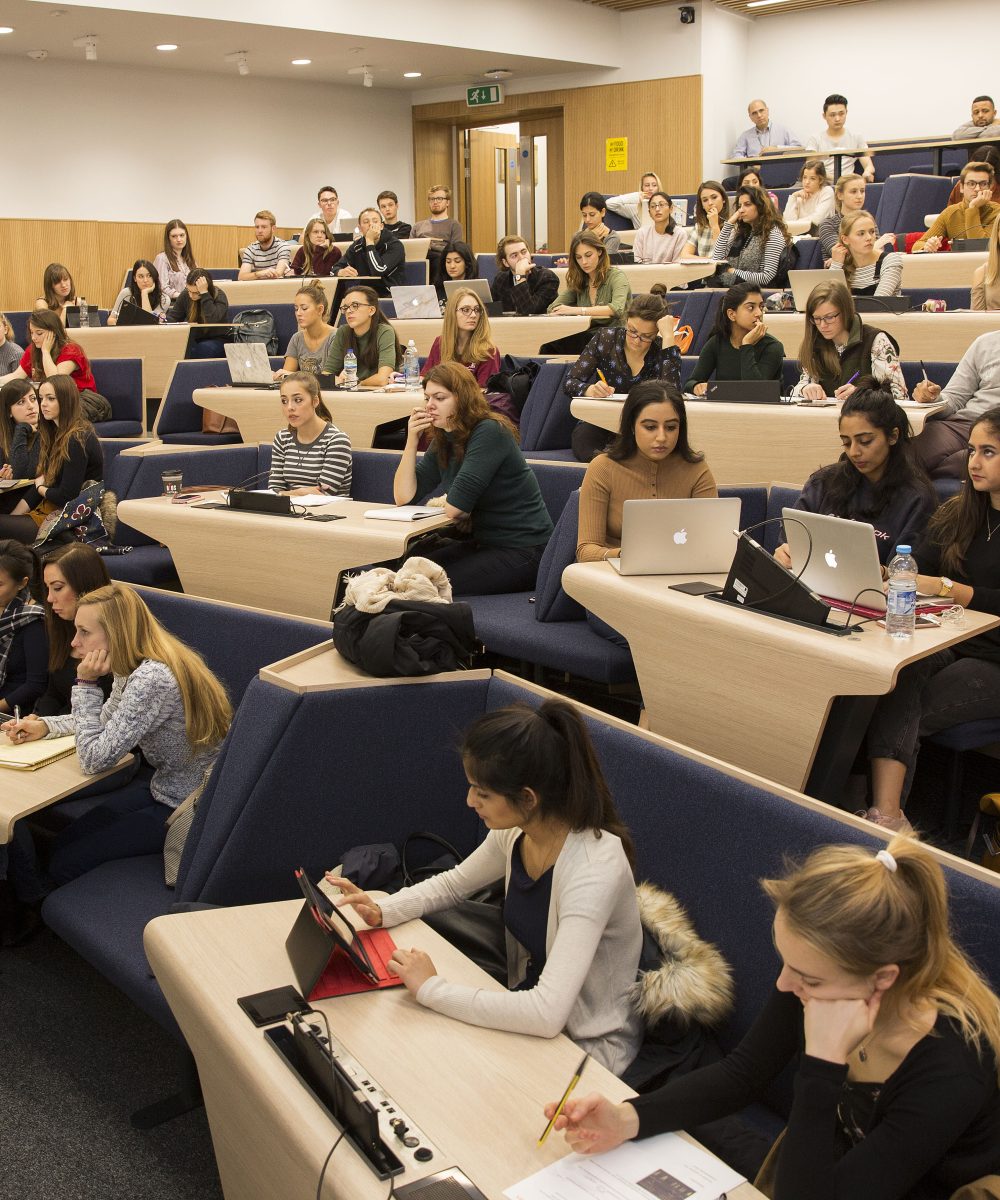

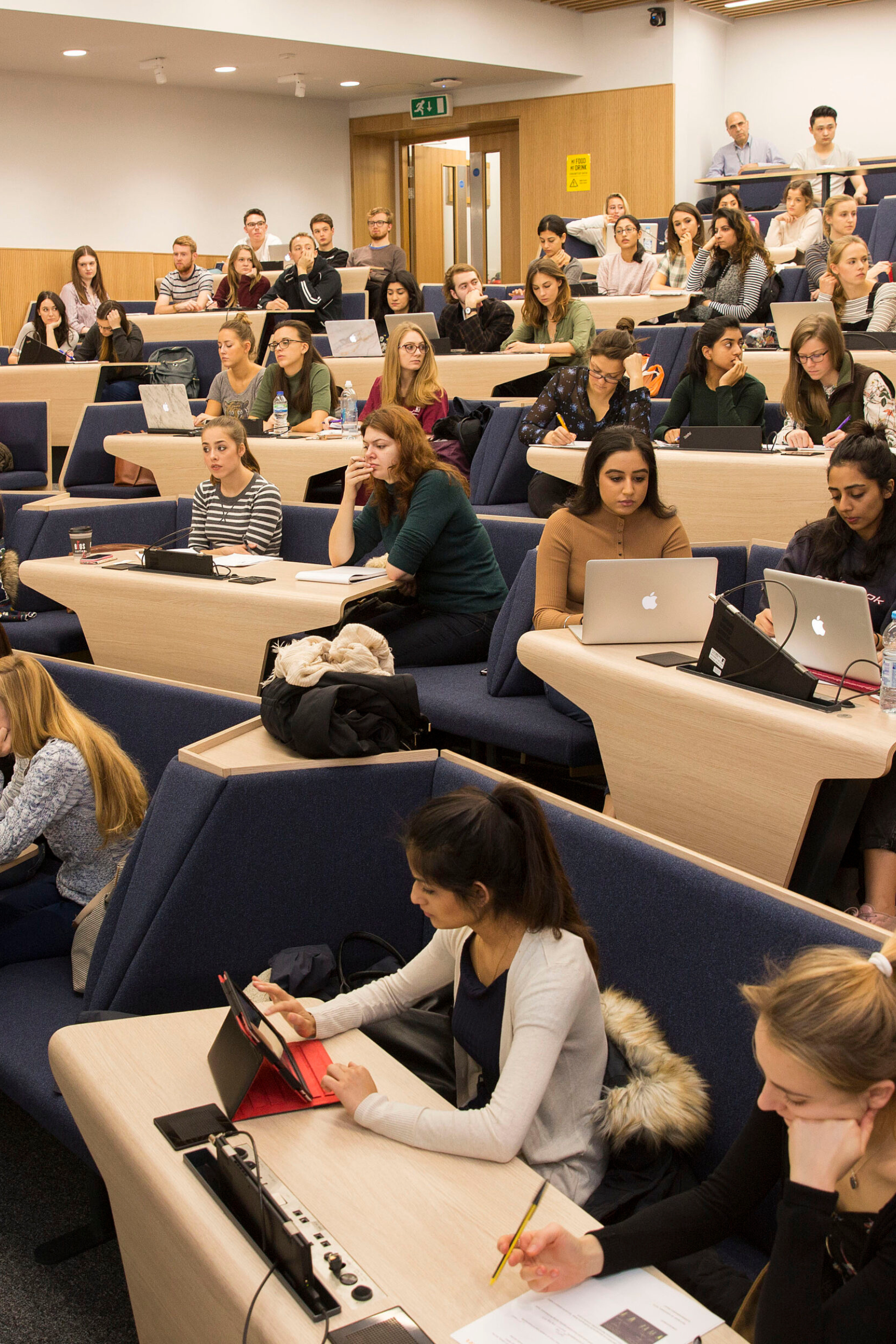

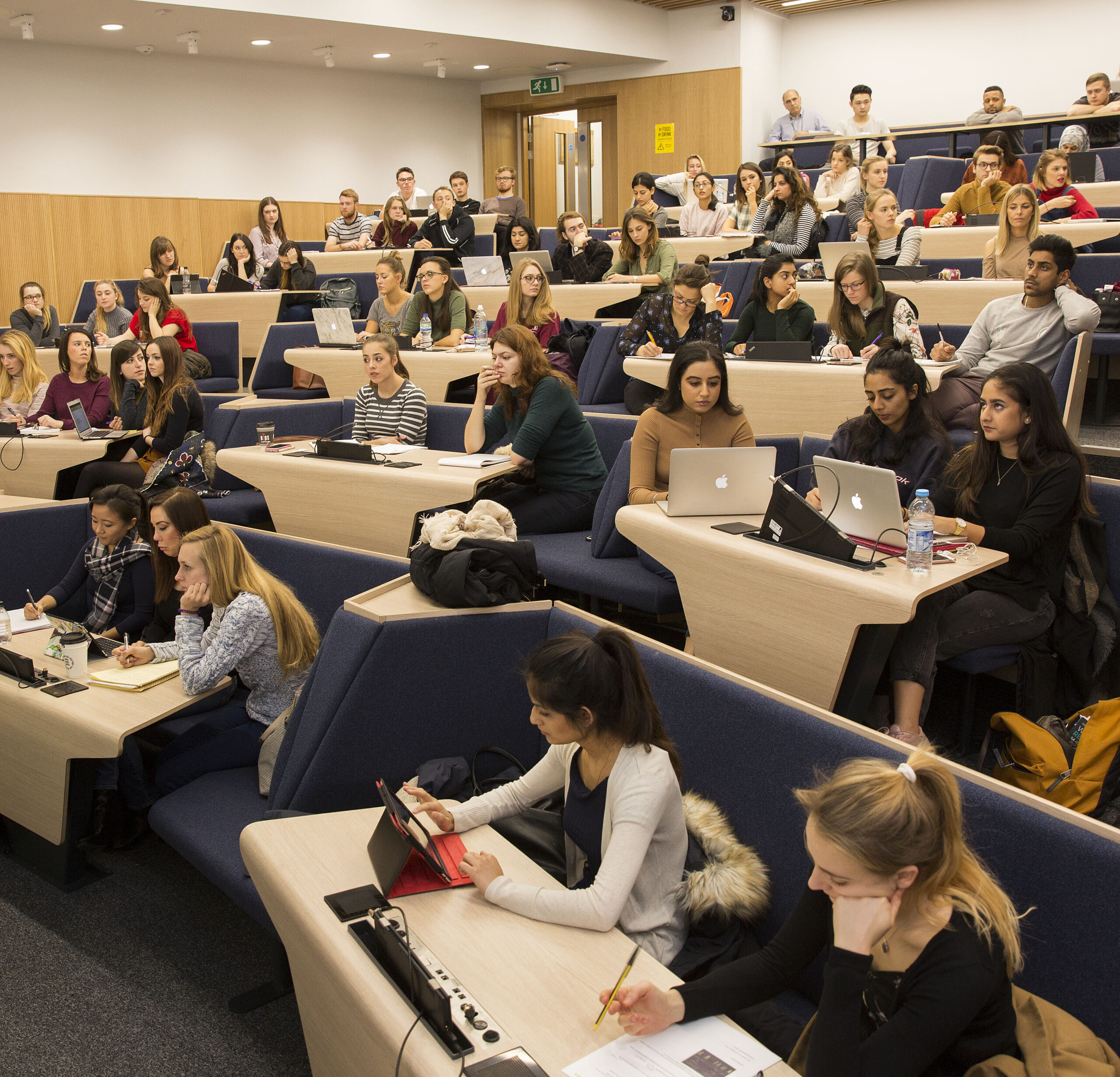

Connect Leeds University Dental Lecture Theatre

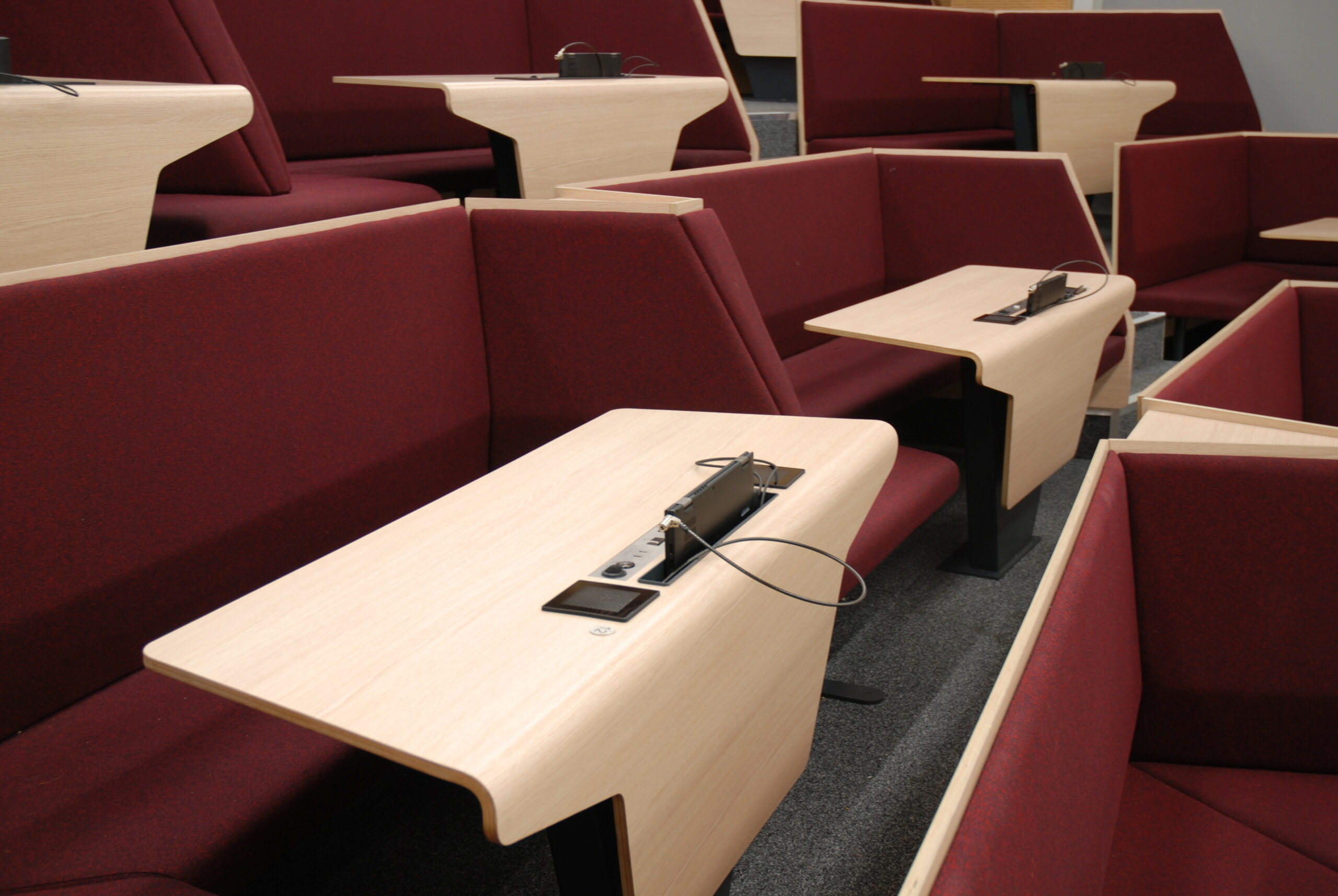

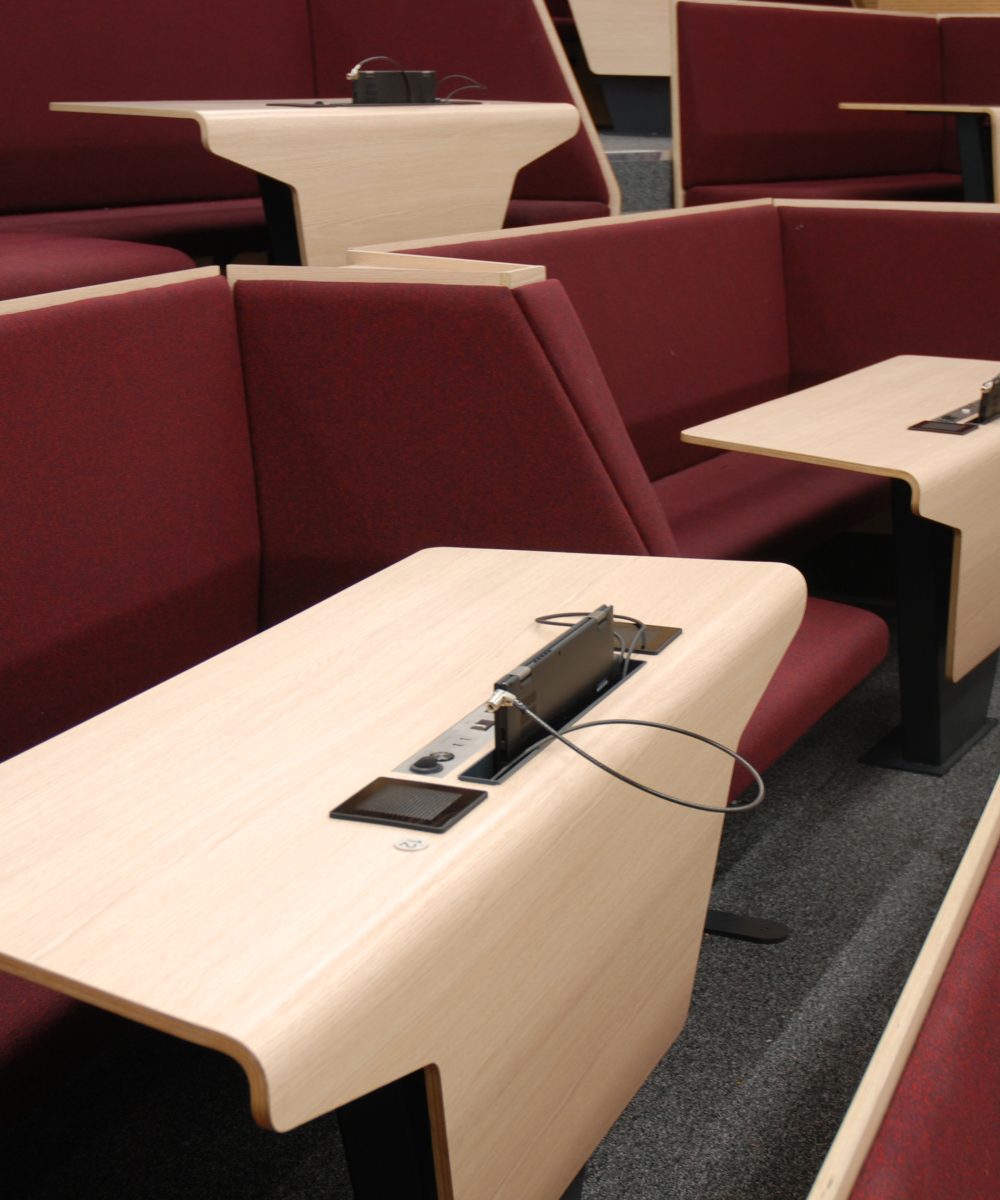

Leeds University Mechanical Engineering Connect

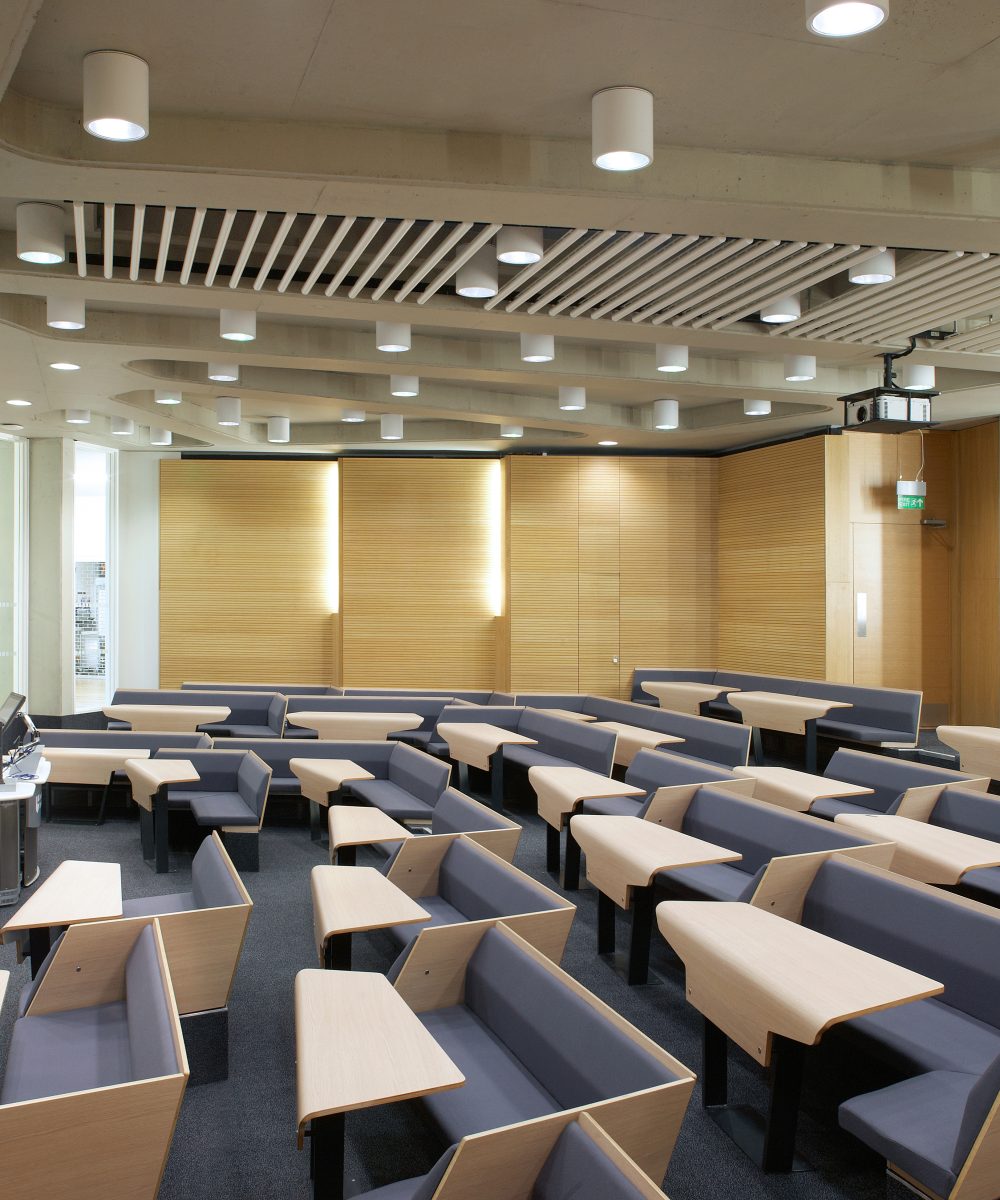

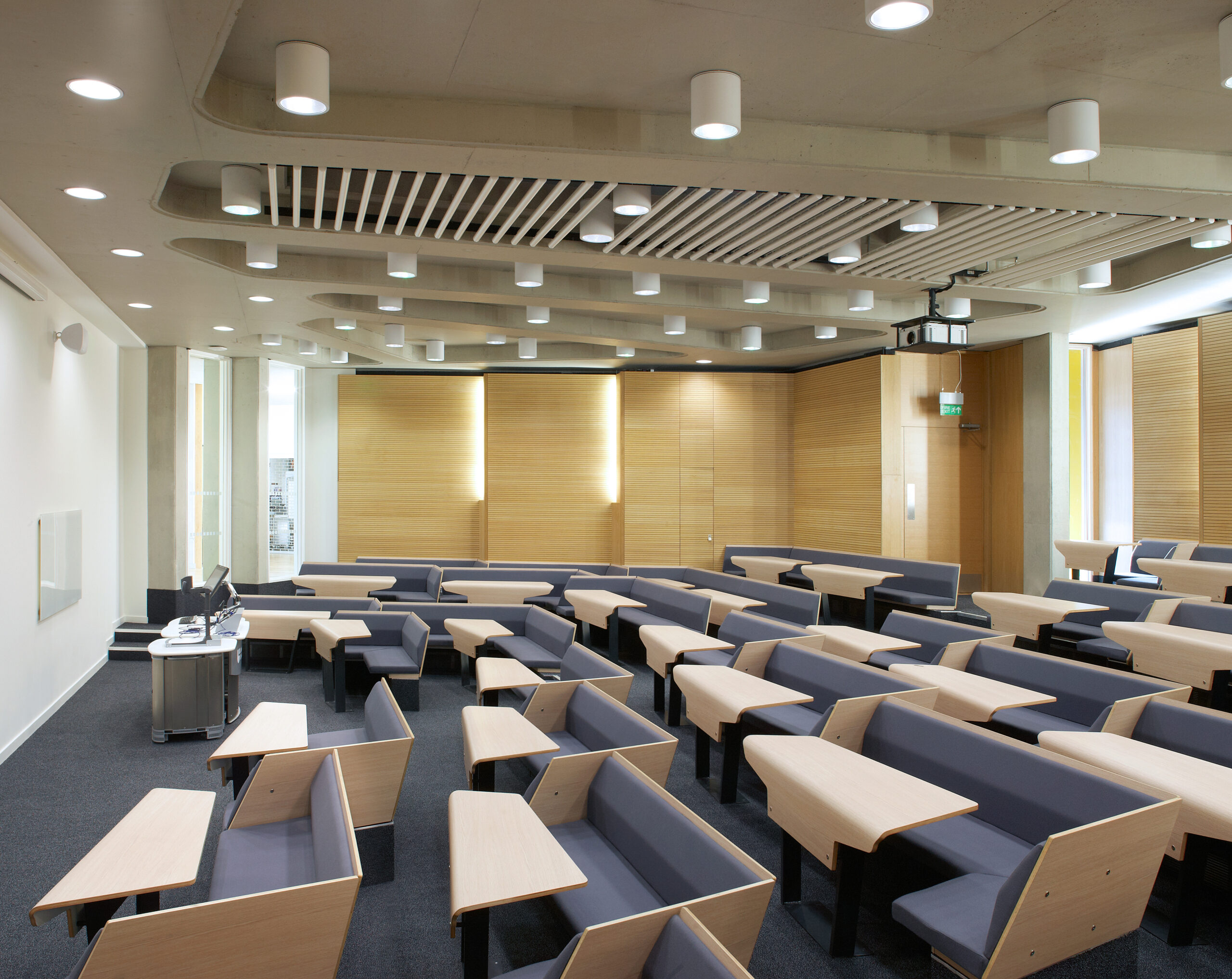

NBA Loughborough Design School 8Rev

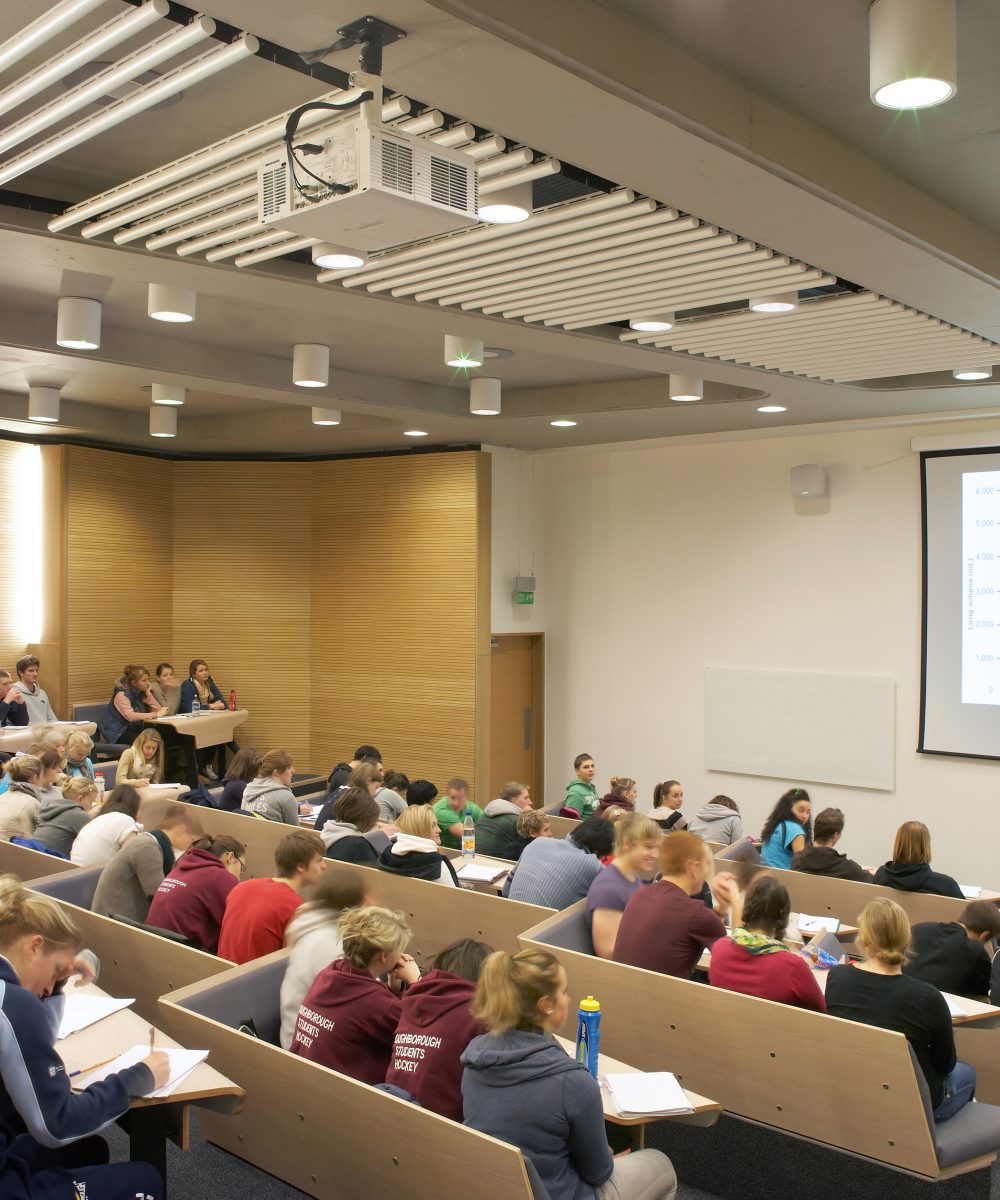

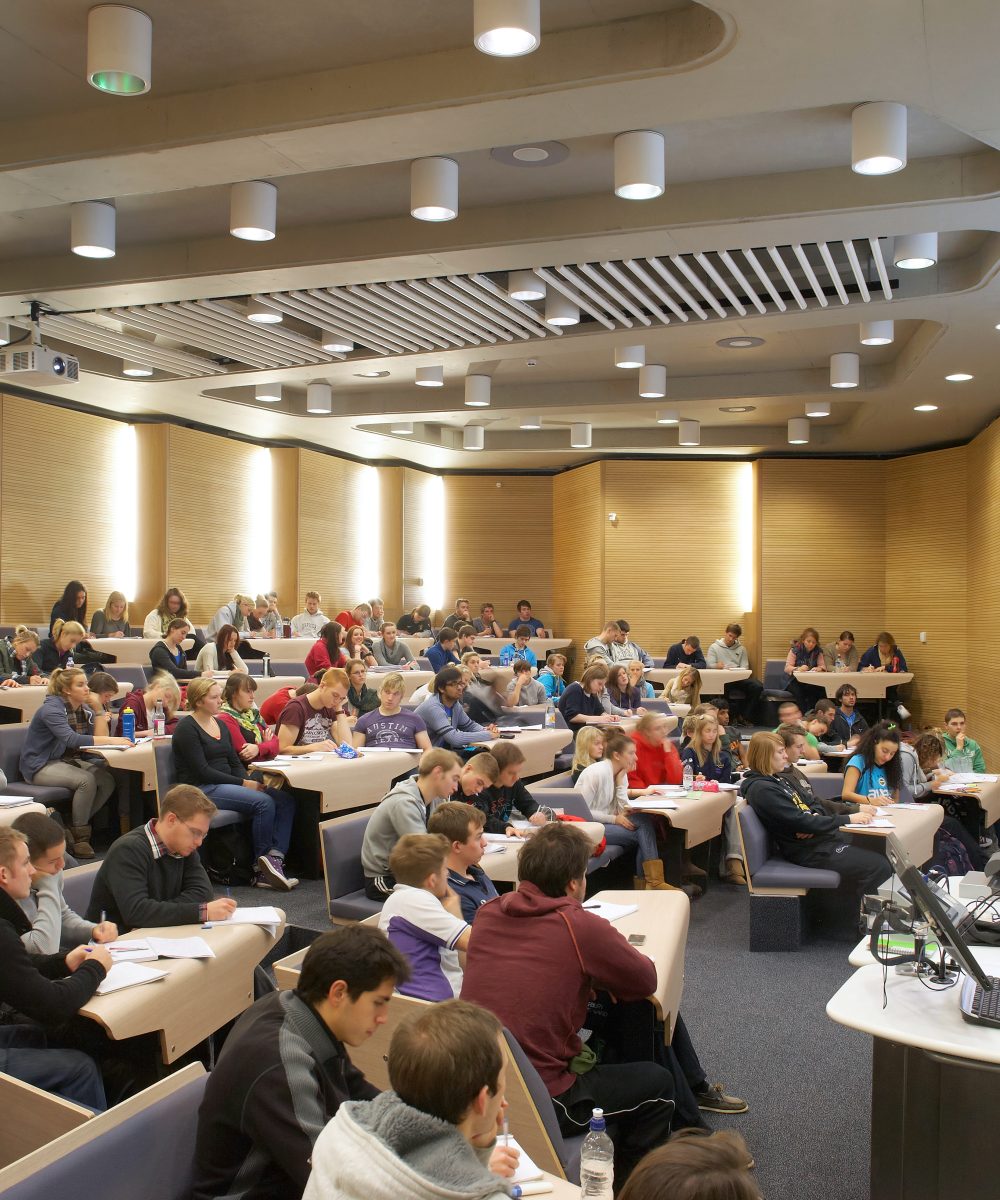

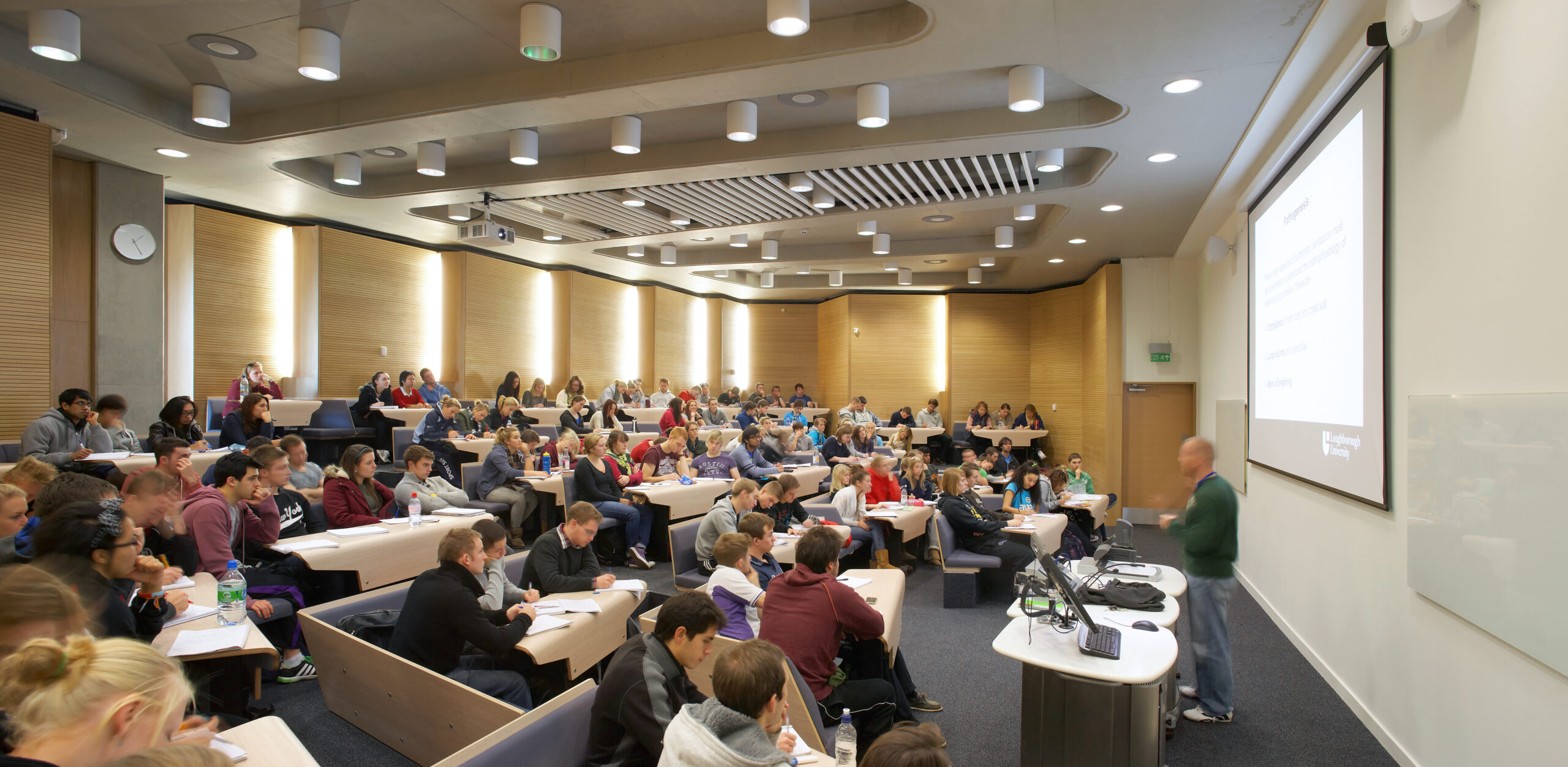

NBA Loughborough Design School 35

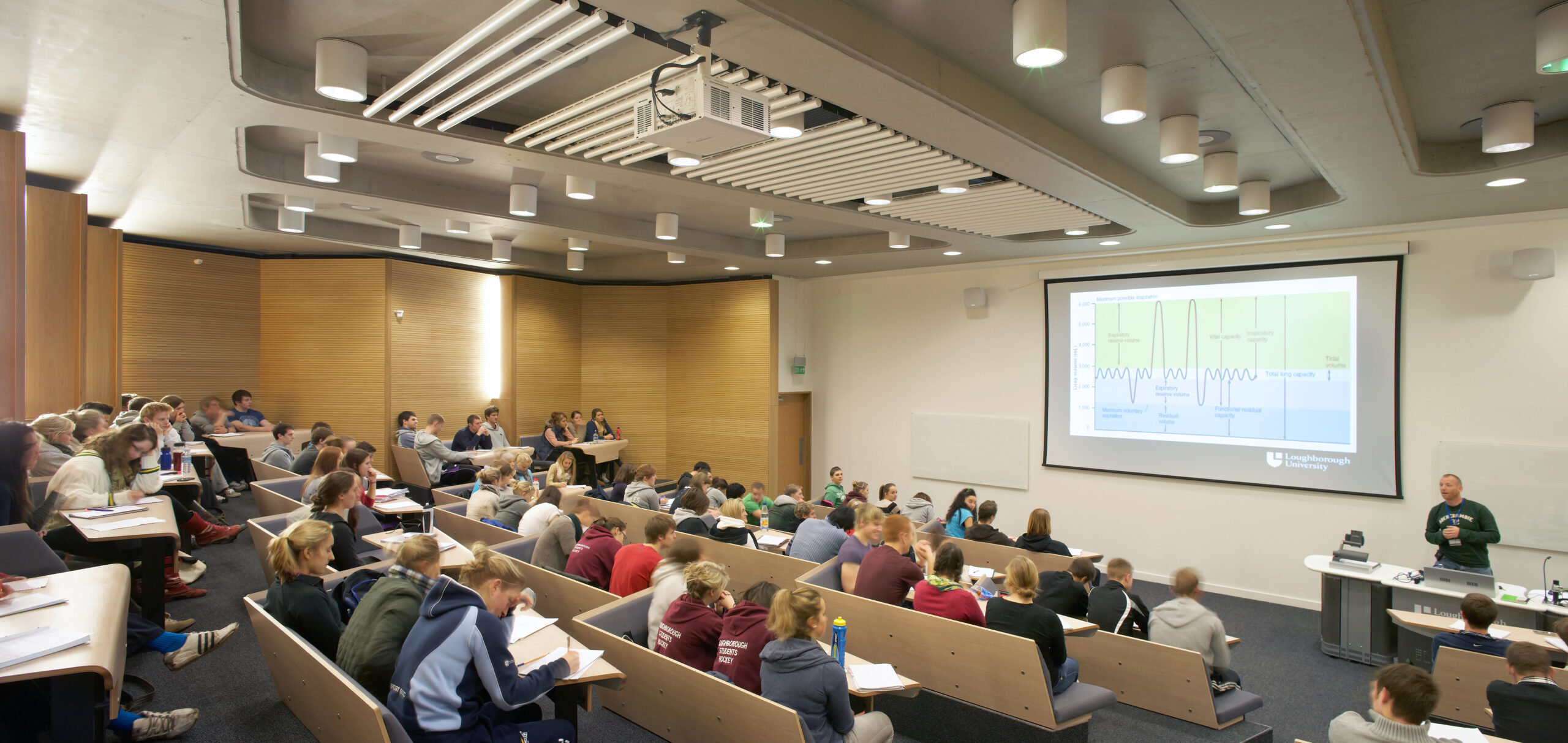

NBA Loughborough Design School 36
Explore
↓

Designed for Dialogue, Built for Learning

Connect transforms traditional lecture spaces into collaborative hubs. With forward-thinking layouts and integrated tech, it encourages active participation, deeper engagement, and flexible teaching styles – all without compromising on style or comfort.

Prestige Seating for Progressive Spaces

Chosen by top universities worldwide, such as Loughborough University and Heriott Watt in Dubai, Connect offers a smart, sustainable solution for institutions investing in the future of education. It’s not just seating – it’s a strategic tool for modern pedagogy.

Downloads

IMPORTANT NOTES

  1. 2D CAD product drawings for spatial planning only
  2. Drawings depict baseline product variants only
  3. Additional bespoke sizes, back angles and features available upon request
  4. Contact sales@racefurniture.com for all finish specifications and further bespoke options
  5. Additional setting-out tolerances to be adopted when space planning
    • Minimum clearance to be dictated by one of the following options (whichever is the greatest):
    • 5.1 As Built Building Tolerance
      • 5.1.1. 50mm minimum clearance from adjacent fixed obstructions
    • 5.2. Manufacturing Assembly Tolerance
      • 5.2.1. Individual Chair: +/- 10mm
      • 5.2.2. Bank of 5 chairs: +/- 15m
Go to imagebank →

Product Details

Connect by Race Furniture is an award-winning collaborative seating solution designed to transform traditional lecture theatres into dynamic learning environments. Developed in collaboration with Burwell Architects and Loughborough University, Connect facilitates seamless interaction between educators and students, promoting active learning and engagement.

The innovative design features repeated bench units and shared tables, maximizing sightlines and allowing for interchangeable teaching styles without the need for reconfiguration. This flexibility enables educators to circulate freely, fostering better interaction and collaboration among students.

  • Customisable Dimensions: Tailor seat height, width, and back angle to fit specific spatial requirements.
  • Diverse Finishes: Choose from a wide range of upholstery styles, natural veneers, and powder-coated frames to match your design aesthetic.
  • Integrated Technology: Incorporate power outlets, data ports, and cable management systems seamlessly.
  • Flexible Configurations: Variable configurations to suit different teaching styles and room layouts.
  • Bespoke Specification Fire testing available upon request
  • All Fabrics conform to BS 5852:2006 Clause 12. Ignition Source 5 (Crib 5): Medium Hazard
  • All Polyurethane Foams are: Combustion Modified High Resilience (CMHR)
  • Typically, seats are all FSC® approved, and contain 80%+ recycled steel content.
  • Race Furniture’s products can be disassembled with standard tools thereby allowing reuse, refurbishment, repair, and recycling of components.
  • For further guidance on our sustainability procedures and certifications please reference our Sustainability Manual.
We can integrate any accessory, from any supplier, as per your requirements. Integrated power and data, Seat and aisle signage, DDA tip-up space provision. Freestanding tables.
  • Seat height: 460mm
  • Row Spacing: Determined from seating layout and constrained by the requirements of: BS 9999:2017 Code of practice for fire safety in the design, management & anthropometric data for the target user group
  • Nominal Height: 840mm
  • Nominal Length: 1,010mm bench and table
  • Width: from 1,780mm

Note – These dimensions are for your guidance only. We create bespoke seating based on the product ‘models’ we show here, therefore all dimensions are fully customisable as per your requirements.

Wide choice of finishes. Upholstered seats and backs. High pressure laminate (HPL) seats and backs. Natural solid-woods or natural veneer seats and backs. Powder coated frame finish.

Design by Burwell Architects and Race Furniture

Product Variants

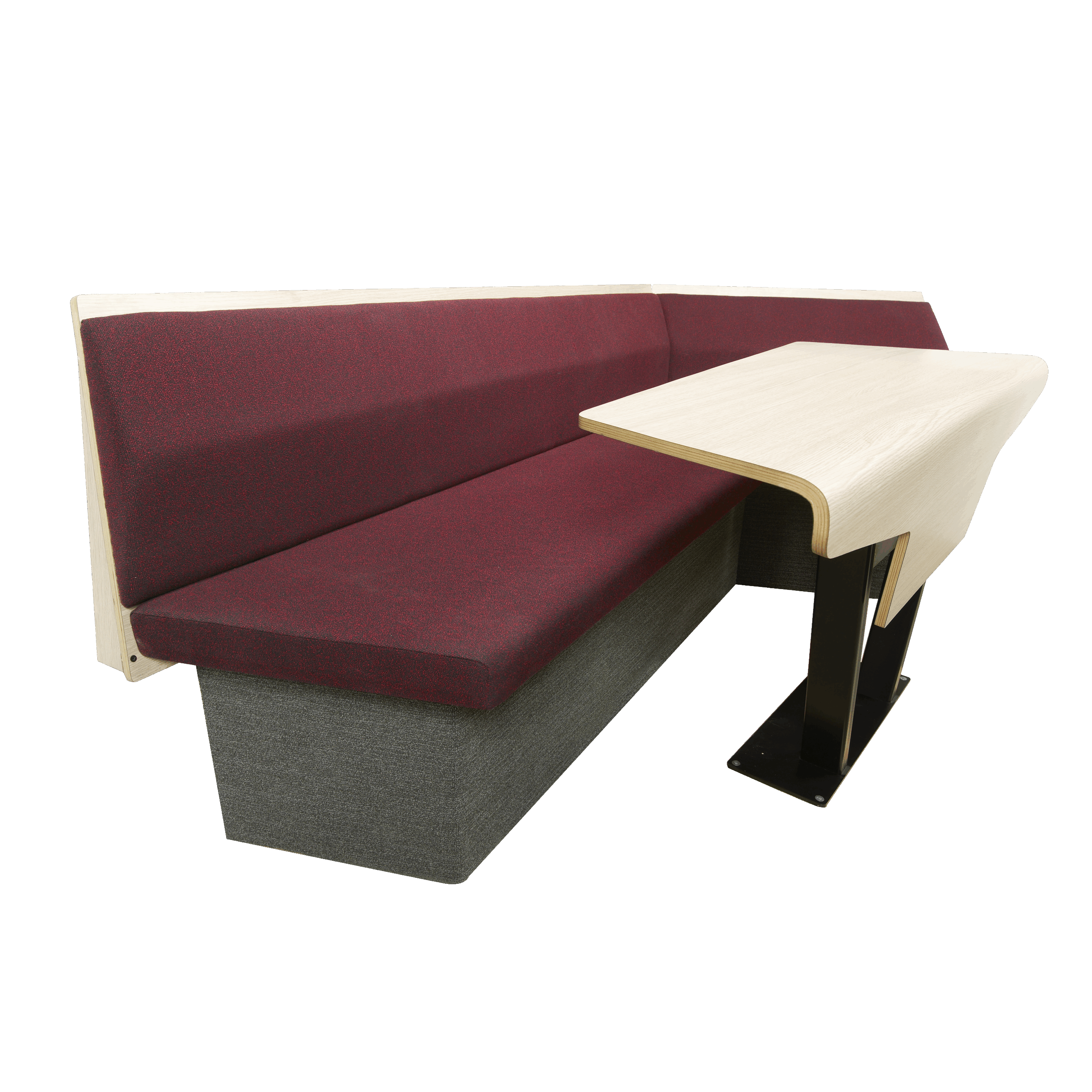

race292197

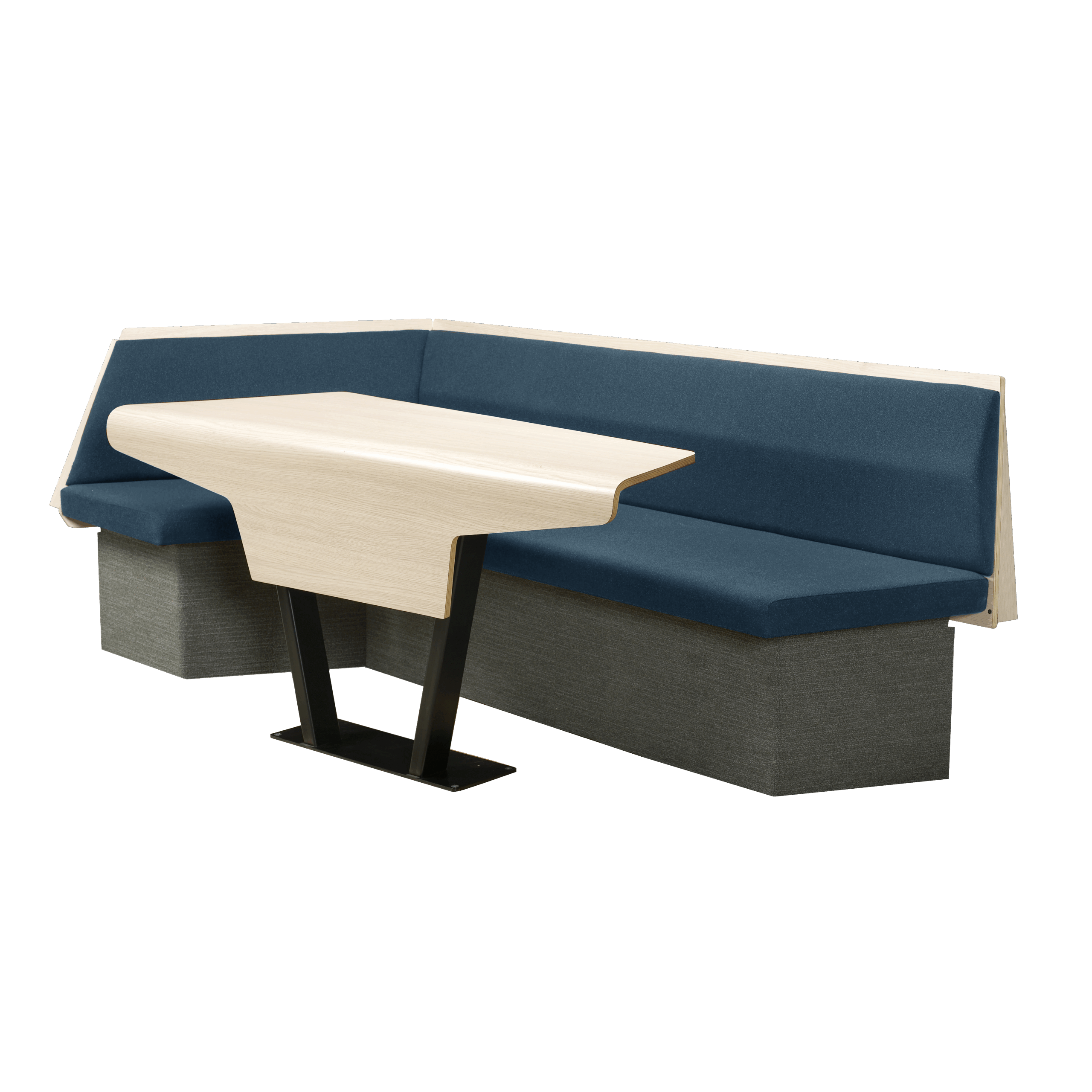

race292190 rev2

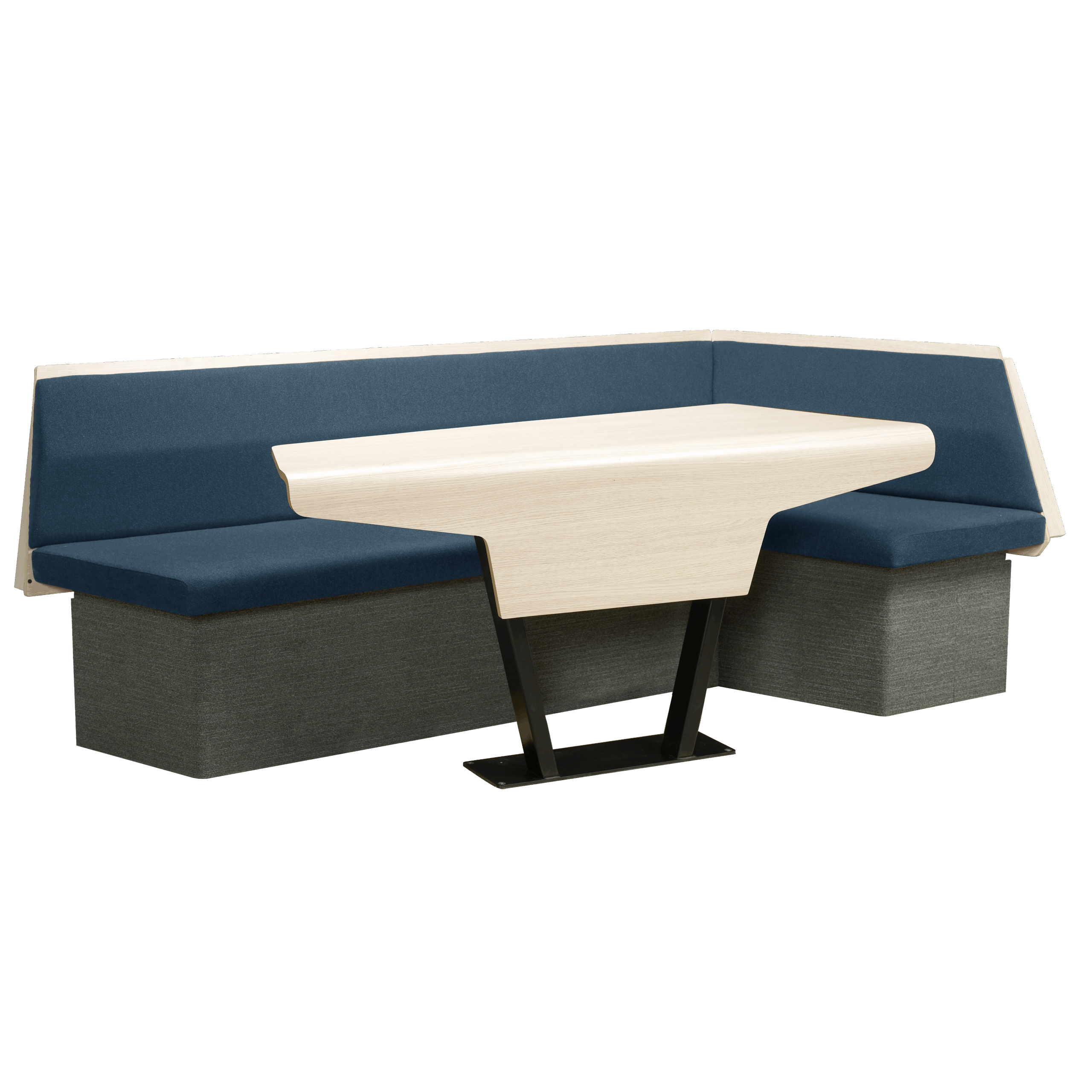

race292193 Blue
